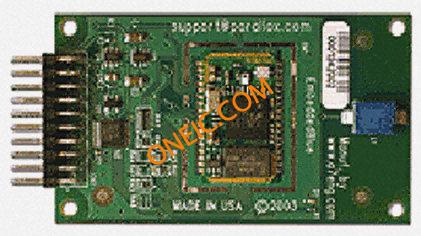

30068
| Manufacturer | |
| Description | Daughter Cards & OEM Boards BLUETOOTH TRANSCEIV. MODULE EMBEDDED BLUE TRANSCEIVER APPMOD Parallax Inc Bluetooth Module 30068 1.2 6dBm |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q2239141 | Product Category | Daughter Cards & OEM Boards |
| Standard Package | 1 | ||
Compliance
| RoHS | No | ||
Electrical
| Frequency | 2.4GHz | Interface | RS232 |
| Power - Max | 6dBm | Sensitivity | -85dBm |
| Data Interface | PCB, Through Hole | Power - Output | -4dBm |
| Data Rate (Max) | 90kBaud | Voltage - Supply | 5 V ~ 10 V |
| Current - Receiving | 80mA | Current - Transmitting | 250mA |
| Available Frequency Range | UART | Voltage - Input Offset (Max) | -85dBm |
Mechanical
| Width | 40.64mm | Height | 8.9mm |
| Length | 75.85mm | Packaging | Bulk |
| Package / Case | Module | Size / Dimension | 40.64 x 75.85 x 8.9mm |
| Antenna Connector | PCB, Surface Mount | ||
Product Info
| Applications | Bluetooth v1.1 | Firmware Version | 1.2 |
| Modulation or Protocol | Bluetooth v1.1, Class 2 | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | -20°C ~ 75°C |
