27114
| Manufacturer | |
| Description | DUAL RELAY BOARD KIT Dual 8A relay module kit Relay Sockets & Hardware Dual Relay Board Kit Parallax Inc Dual 8A Relay 模块 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Current Rating (Max) | 8 A | ||
Mechanical
| Mounting Style | PCB | Termination Style | Screw |
Product Info
| Contents | Board, Components for Assembly | Embedded | No |

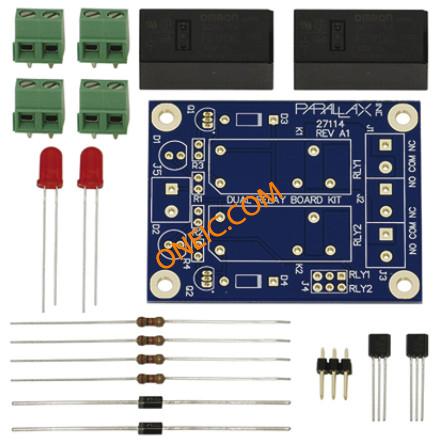

| Technology | Power Management | Kit Contents | (1) Connector, Header, 2 x 3, 0.1 in, Straight, (1) Raw PCB, Dual Relay Board, (2) 1N4004 Diode, Rectifier, 1V, 400V, 1 A, Axial, (2) 2N3904 NPN Transistor, TO-92, (2) LED, Red, T1-3/4, (2) Omron Relay G2RL-14-DC12, SPDT, 12 A, 12 V dc, (4) 2 Position Screw Terminal Block, (4) Resistor, 1K, 5%, 1/4 W, CF |
| Main Purpose | Interface, Relay | Card Standard | Development Kit |
| Accessory Type | Relay Board Kit | Primary Attributes | 12V, 12A SPDT Relay |
| Utilized IC / Part | G2RL-14 DC12 | Secondary Attributes | LED Status Indicators |
