点击放大查看

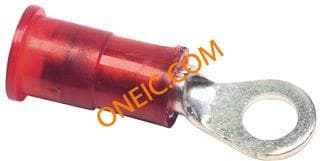

PNF18-6R-C
| Manufacturer | |
| Description | Ring Tongue Terminal 18-22AWG 19.56mm 6.35mm Tin Terminals #6 22-18 NYL RED RNG TERM RING NYL 22-18AWG #6 Ring Terminal, Nylon Insulated, 22 - 18 AWG, #6 Stud Size, Funnel Entry, Pack of 100 |
| Category |
Business
| Product | Ring Terminals | Lead Time | 14 Days |
| Subcategory | Connector Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Color | Red | Depth | 6.35 |
| Length | 0.78 in | Weight | 3.200000 oz |
| Plating | Tin | Packaging | Bulk |
| Thickness | 0.032" (0.81mm) | Insulation | Insulated |
| Wire Gauge | 18-22 AWG | Termination | Crimp |
| Body Material | Copper | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3.5 mm | Terminal Type | Circular |
| Contact Finish | Tin | Contact Material | Copper |
| Length - Overall | 0.770" (19.56mm) | Termination Style | Crimp |
| Insulation Diameter | 0.080" ~ 0.136" (2.03mm ~ 3.45mm) | Insulation Material | Nylon |
| Width - Outer Edges | 0.250" (6.35mm) | Material - Insulation | Polyamide (PA), Nylon |
Product Info
| Type | Ring Tongue Terminal | Series | PNF |
| Features | Serrated Termination | UNSPSC Code | 31163100 |
Documents & Media
