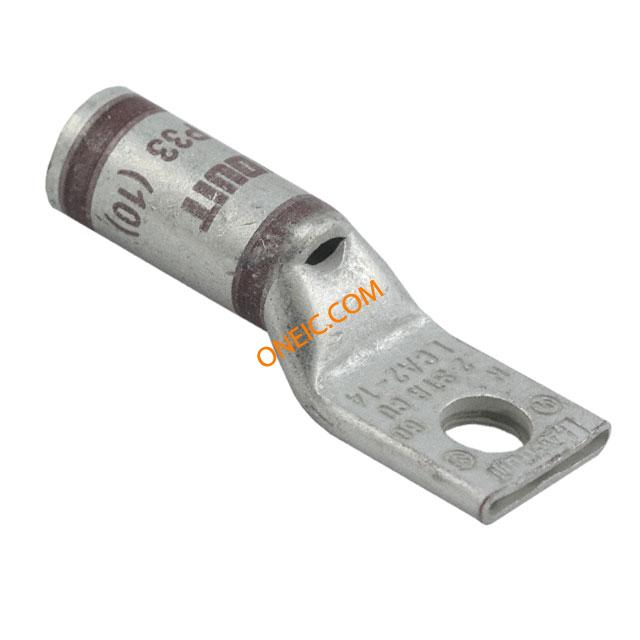

LCA2-14-Q
| Manufacturer | |
| Description | Lug Terminal 2AWG 44.95mm 15.24mm Electro-Tin Terminals COPPER 2AWG 1/4 COPPER LUG 1/4" HOLE #2 AWG COPPER LUG; 1 HOLE; #2 AWG; 1/4 BOLT TERMINAL, COMPRESSION LUG, 1/4IN, CRIMP COPPERLUG,1HOLE,#2AWG,1/4BOLT Copper Compression Lug, 1 Hole, #2 AWG, 1/4" (6.4mm) Stud, Pack of 25 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Lug Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | ||
Mechanical
| Color | Brown | Depth | 15.24 |
| Weight | 1 lb | Plating | Electro-Tin |
| Packaging | Bulk | Insulation | Not Insulated |
| Wire Gauge | 2 AWG | Termination | Crimp, Barrel |
| Body Material | Copper | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6.35 mm | Tab Thickness | 0.100" (2.54mm) |
| Terminal Type | Lug, Grounding | Connector Type | :Lug, Compression |
| Contact Finish | Electro-Tin | Terminal Style | Single Stud Hole |
| Contact Material | Copper | Insulation Color | :Uninsulated |
| Length - Overall | 1.772" (45.00mm) | Termination Style | Solder Lug |
| Diameter - Ring ID | 0.270" (6.86mm) | Width - Outer Edges | 0.600" (15.24mm) |
| Diameter - Barrel ID | 0.310" (7.87mm) | Diameter - Barrel OD | 0.420" (10.67mm) |
Product Info
| Type | Lug Terminal | Gender | Female |
| Series | LCA | ||
