PM4HS-H-24V
| Manufacturer | |
| Description | Electromechanical Relay DPDT 5A 24VDC 24VAC Plug-In TIMER ANALOG 24VDC Relay,TimeDelay,24VAC/VDC,DPDT,2FormC,1Secto500Hr,PowerOnDelay Panasonic 2912565 单 计时继电器, 1 s → 500 小时, 双刀双掷, 2触点, DPDT, 24 V 交流/直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | DPDT (2 Form C) | Delay Time | 0.1 Sec ~ 500 Hrs |
| Output Type | Mechanical Relay | Range deg/s | 1 s → 500 小时 |
| Operating Mode | 电源接通延时 | Delay Time - OFF | 小时，分钟，秒 |
| Voltage - Supply | 24VAC/DC | Current Rating (Max) | 5 A |
| Timing Initiate Method | Input Voltage, Trigger Signal | Contact Rating @ Voltage | 5A @ 250VAC |
Mechanical
| Depth | 48mm | Width | 72.5mm |
| Length | 48mm | Mounting Type | Socket |
| Connector Type | 8 引脚连接器 | Contact Material | 银合金 |
| Termination Style | 8 Pin Socketable | Number of Contacts | 2 |
| Contact Layout, Typical | 双刀双掷 | ||
Product Info
| Function | On-Delay | Relay Type | Integrated |
| Switch Type | DPDT | Number of Timers | 单 |
| Timing Adjustment Method | Hand Dial | ||
Environmental
| Operating Temperature | -10°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

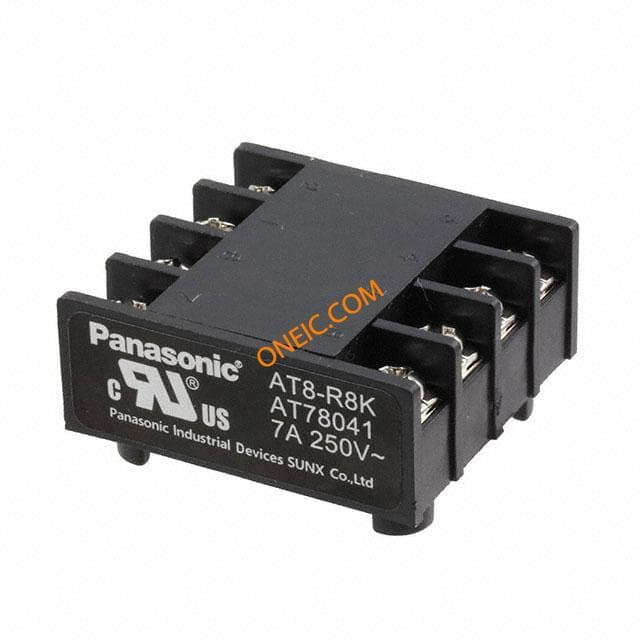

AT78041
PANASONIC EW
SOCKET 8 PIN FOR DIN
$38.3520
Details
AT8-DA4
PANASONIC EW
Mounting Hardware MOUNTING FRAME, LT4H/ QM4H/ PM4H MOUNTING FRAME DIN48
$19.1760
Details

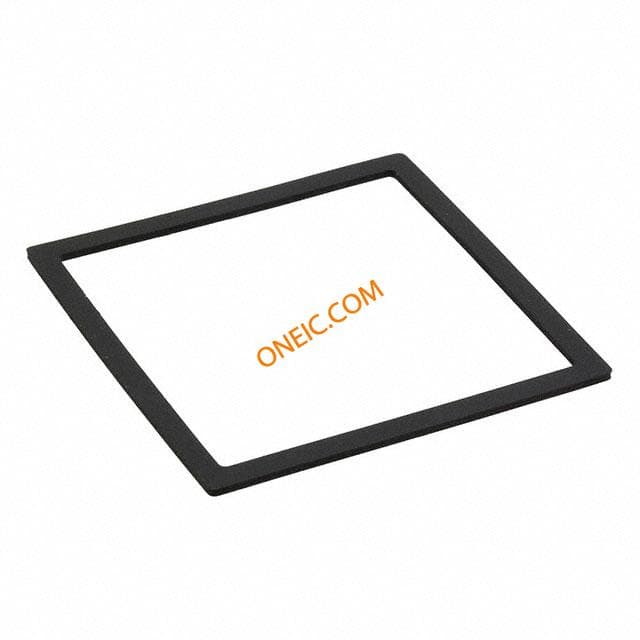

ATC18002
