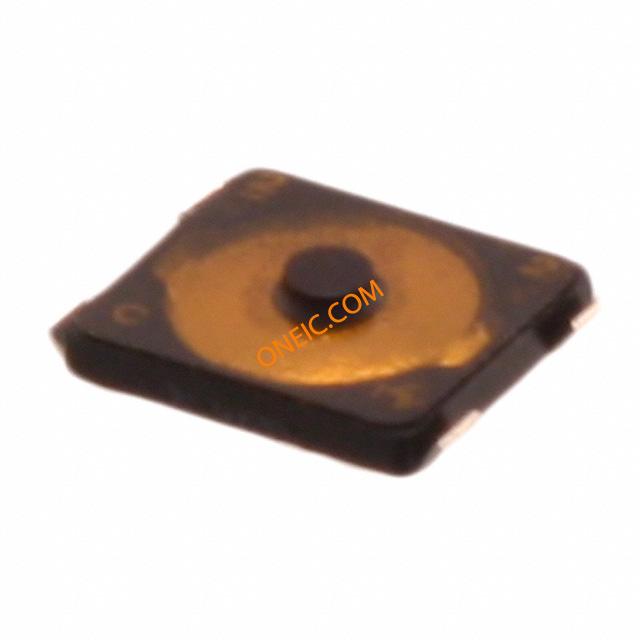

EVP-AFFG65
| Manufacturer | |
| Description | Tactile Switches LIGHT TOUCH SWITCH SWITCH TACTILE SPST-NO 0.02A 15V Tactile Switches SPST-NO Force 160 gf OFF-(ON) .7mm H SWITCH, TACTILE, SPST-NO, 20mA, 15VDC, SMD EVP-AF Series 3.0 x 2.6 mm SMD 1.6 N Push Plate Light Touch Switch |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | P15511CT | Standard Pack | 8,000 |
| Product Category | Tactile Switches | Standard Package | 8,000 |
| Factory Pack Quantity | 8000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85365019 |
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | OFF - (ON) | Current Rating (Max) | 20 mA |
| Current - Max/Contact | :20mA | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :15V |
Mechanical
| Weight | 0 | Outline | 3.00mm x 2.60mm |
| Packaging | Tape & Reel (TR) | Contact Form | SPST - NO |
| Actuator Type | Round | Mounting Type | Surface Mount |
| Switch Travel | 0.15mm | Connector Type | No |
| Contact Finish | Silver | Mounting Style | SMD/SMT |
| Operating Force | 160 gf | Termination Style | J Lead |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 0.7 mm |
| Switch Actuation Level | :Top | Contact Layout, Typical | :SPST-NO |
| Actuator Height off PCB, Vertical | 0.65mm | ||
Product Info
| Illumination | Not Illuminated | ||
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | - 20 C to + 70 C |
