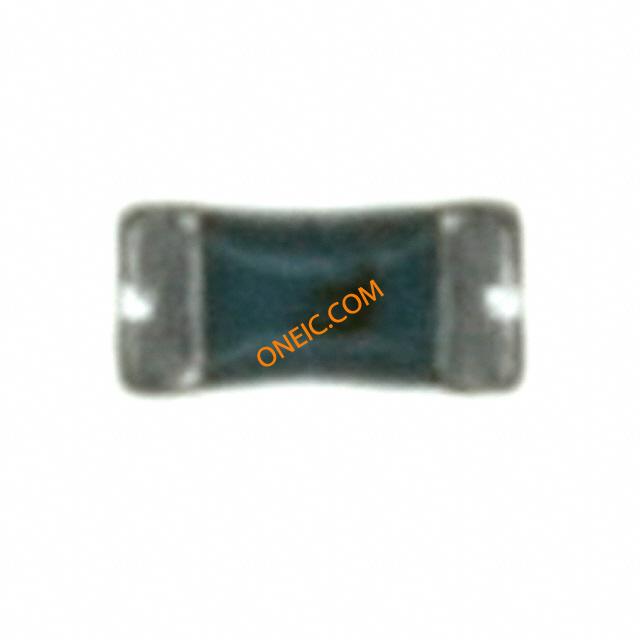

ERB-SE0R50U
| Manufacturer | |
| Description | Surface Mount Fuses Micro Chip Fuse0603 Fuse Chip Fast Acting 0.5A 32V SMD Solder Pad 0603 T/R FUSE .5A 32V FAST 0603 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Surface Mount Fuses | Other Names | P11369CT |
| Standard Package | 5,000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | cUL, UL | ||
Electrical
| Resistance | 370 mOhms | Response Time | Fast |
| Voltage Rating | 32 V | Interrupt Output | 50 Amps |
| DC Cold Resistance | 0.37 Ohm | Current Rating (Max) | 500 mA |
| Voltage - Supply (Min) | 50A | ||
Mechanical
| Depth | 0.8 | Width | 0.8 mm |
| Height | 0.7 | Packaging | Reel |
| Mounting Type | Surface Mount | Package / Case | 0.7 mm |
| Length - Overall | 1.6 | Size / Dimension | 1.6 mm L x 0.8 mm W |
| Number of Contacts | 2 | ||
Product Info
| Type | Micro Chip Fuse | Series | ERBSE |
| Fuse Size | 0603 (1608 metric) | Fuse Type | Fast Blow |
| Product Type | Surface Mount Fuse | ||
Environmental
| Must Operate | Fast | Mechanical Life | Obsolete |
| Operating Temperature | - 40 C to + 100 C | ||
Documents & Media
PDF Document
