EEU-HD1E222
| Manufacturer | |

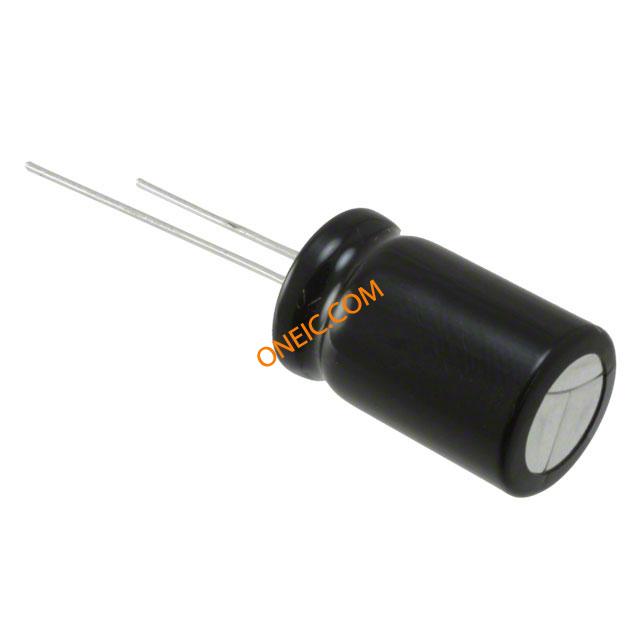

| Description | Aluminum Electrolytic Capacitors - Leaded 2,200uF 25volts 12.5x20 LS 5mm Cap Aluminum 2200uF 25V 20% (12.5 X 20mm) Radial 5mm 1090mA 2000h 105°C Bulk CAP ALUM 2200UF 25V 20% RADIAL EEU-HD1E222 Cap Aluminum Lytic 2200uF 25V 20% (12.5 X 20mm) Radial 5mm 1090mA 2000h 105°C Bulk Capacitor; Alum Lytic; Cap 2200 uF; Tol 20%; Vol-Rtg 25 VDC; Radial; 12.5x20; Bulk EEU-HD Series 25 V 2200 uF ?12.5 x 20 mm LS=5mm 105 癈 Radial Electrolytic |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | General Purpose Electrolytic Capacitors | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 25VDC | Tolerance | 20 % |
| Capacitance | 2200 uF | Voltage Rating | 25 V |
| Current - Leakage | 550@2Min | Ripple Current @ High Frequency | 1.09 A |
Mechanical
| Height | 20 | Diameter | 12.5 mm |
| Packaging | Bulk | Lead Style | Straight |
| Termination | Radial | Lead Spacing | 5 mm |
| Pin Diameter | 0.6 | Pitch - Post | 5 |
| Mounting Type | Through Hole | Package / Case | 20 mm |
| Material - Core | Aluminum Electrolytic | Size / Dimension | 12.5 mm Dia. x 20 mm L |
| Termination Style | Radial | Diameter - Outside | 0.6 mm |
Product Info
| Type | Electrolytic | Series | HD |
| Manufacturer | HD Series | Electrical Life | 2000 |
Environmental
| Rated Life | 2000 h | Mechanical Life | New Product: New from this manufacturer. |
| Temperature Range | –55 to 105 °C | Operating Temperature | - 55 C to + 105 C |
Documents & Media
PDF Document
