EEE-HD1H2R2R
| Manufacturer | |
| Description | Aluminum Electrolytic Capacitors - SMD 2.2UF 50V ELECT HD SMD CAP ALUM 2.2UF 50V 20% SMD EEE-HD1H2R2R Cap Aluminum Lytic 2.2uF 50V 20% (4 X 5.8mm) SMD 12mA 5000h 105°C T/R Capacitor; Alum Electrolytic; Cap 2.2 uF; Tol 20%; Vol-Rtg 50 VDC; SMT; 4x5.8; TR |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | High Temp Electrolytic Capacitors | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 20 % | Capacitance | 2.2 uF |
| Voltage Rating | 50 V | Current - Leakage | 3 uA |
| Dissipation Factor (DF) | 0.12 | Ripple Current @ High Frequency | 12 mA |
| ESR (Equivalent Series Resistance) | 12 Ohms | ||
Mechanical
| Diameter | 4 mm | Packaging | Reel |
| Termination | SMT | Package / Case | 5.5 mm |

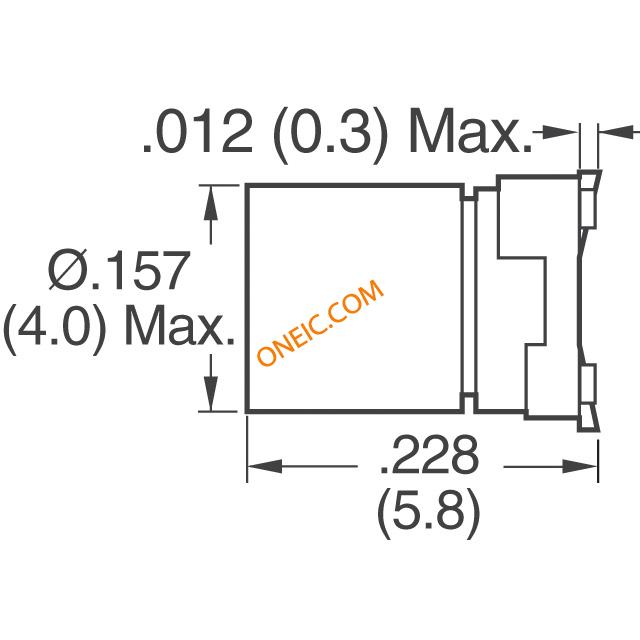

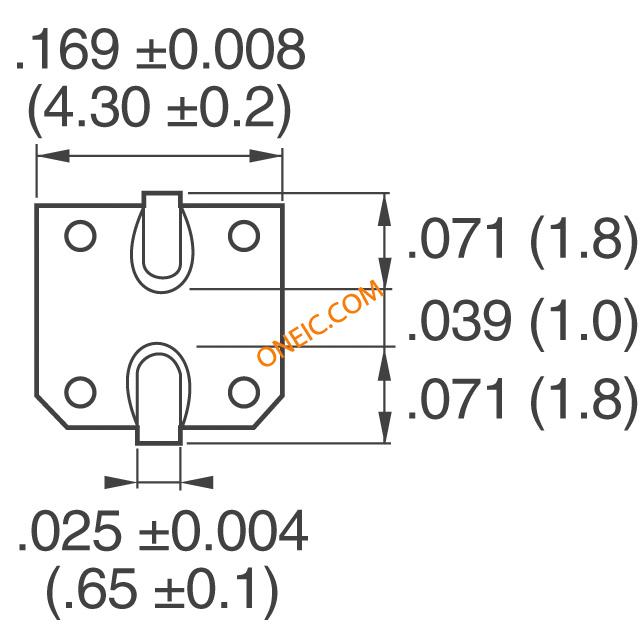

| Material - Core | Aluminum Electrolytic | Size / Dimension | 4 mm Dia. x 5.8 mm L x 5.5 mm H |
| Termination Style | SMD/SMT | ||
Product Info
| Type | Aluminum Capacitors SMD, High Temperature | Series | HD |
| Manufacturer | HD Series | ||
Environmental
| Rated Life | 5000 hr | Temperature Range | –40 to 105 °C |
| Operating Temperature | - 40 C to + 105 C | ||
