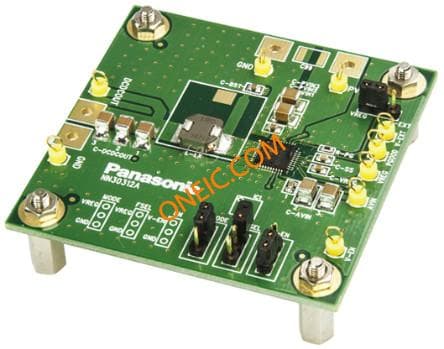

点击放大查看
NN30312A-VB
| Manufacturer | |
| Description | IC REG BUCK ADJ 10A DC-DC 30V 10A HQFN-40 D SMD IC REG BUCK ADJ 10A 40HQFN NN30312A-VB, DC-DC Converter, 5.5V Adjustable, 0.75 to 5.5V, Step Down, 1250kHz, 40-Pin QFN Voltage Regulators - Switching Regulators DC/DC Step Down Reg HQFN 6.0x6.0 BUCK, 30V, 10A, 1250HZ, 0.75-5.5V, 40QFN Switching Regulators, DC/DC Step Down; HQFN-40; 10A NN30312A Series 1250 kHz Synchronous Step Down DC-DC Regulator - HQFN-40 Panasonic 直流-直流转换器, 降压, 10A, 4.5 → 30 V输入, 0.75 → 5.5 V输出, 1250 kHz, 40针 QFN封装 Switching Voltage Regulators DC/DC Step Down Reg HQFN 6.0x6.0 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 5000 |
| Other Names | NN30312A-VBTR | Standard Pack | 5,000 |
| Standard Package | 5,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85423990 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| PWM Type | Hybrid | Frequency | 2500000Hz |
| Output Type | Adjustable | Converter Type | Step Down |
| Voltage Rating | 30 V | Line Regulation | 0.75 %/V |
| Load Regulation | 3.5 % | Current - Output | 10A |
| Number of Outputs | 1 | Current - Output 1 | 10A |
| Frequency - Switching | Selectable | Synchronous Rectifier | Yes |
| Voltage - Input (Min) | 30V | Voltage - Output (Max) | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | 30V | Voltage - Output (Min/Fixed) | 0.75 V |
Mechanical
| Width | 6mm | Height | 0.7mm |
| Length | 6mm | Weight | 0.000076 |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :40 |
| Package / Case | HGFN-40 | Package Cooled | QFN |
| Material Finish | :- | Size / Dimension | 6 x 6 x 0.7mm |
| Number of Positions | 40 | Supplier Device Package | 40-QFN (6x6) |
Product Info
| Type | DC/DC down | Series | NN |
| Matchcode | NN30312A-VB | Standard Leadtime | 18 weeks |
Environmental
| Operating Temperature | -40°C | Maximum Temperature Limit | 85°C |
