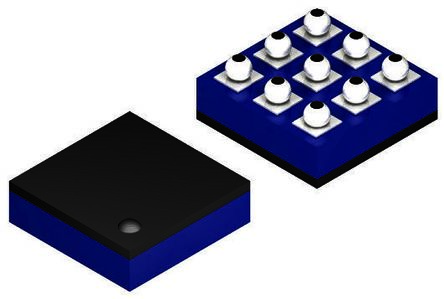

AN30180A-PR
| Manufacturer | |
| Description | IC REG BUCK SYNC ADJ 1.2A 9WLCSP AN30180A-PR, DC-DC Converter, 2.8V Adjustable, 1.15 to 2.8V, Step Down, 3.2MHz, 9-Pin WL-CSP LDO Voltage Controllers Vout 1.15-2.8 1200mA 1Ch Buck DC-DC AN30180A Series 5.5 V 1.2A 3.2 MHz Synchronous DC-DC Step Down Regulator-WLCSP-9 Panasonic 直流-直流转换器, 降压, 1.2A, 2.5 → 5.5 V输入, 1.15 → 2.8 V输出, 3.2 MHz, 9针 WLCSP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AN30180A-PRCT | Standard Pack | 4,000 |
| Standard Package | 4,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| PWM Type | Hybrid | Output Type | Adjustable |
| Converter Type | Step Down | Voltage Rating | 5.5 V |
| Line Regulation | 0.75 %/V | Load Regulation | 5.8 % |
| Current - Output | 1.2A | Current - Supply | 1.8 A |
| Voltage - Supply | 2.5 V | Number of Outputs | 1 |
| Current Rating (Max) | 1.2A | Frequency - Switching | 2.6MHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 1.15 V ~ 2.8 V |
| Voltage - Output (Max) | 2.8 V | Power - Average Forward | 0.148 W |
| Power Dissipation (Max) | 0.148 W | Voltage Regulation - Load | 0.75 %/V |
| Voltage - Output (Min/Fixed) | 1.15 V | ||
Mechanical
| Width | 1.46mm | Height | 0.625mm |
| Length | 1.46mm | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 9 | Package / Case | 9-VFBGA, WLCSP |
| Package Cooled | WL-CSP | Package Quantity | WLCSP |
| Size / Dimension | 1.46 x 1.46 x 0.625mm | Number of Positions | 9 |
| Supplier Device Package | 9-WLCSP (1.46x1.46) | ||
Product Info
| Type | Step-Down (Buck) | Manufacturer | Panasonic |
Environmental
| Operating Temperature | -30°C ~ 85°C | ||
