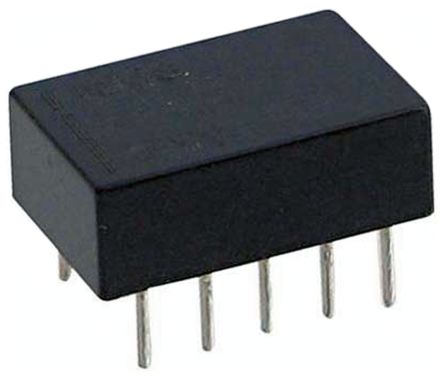

TQ2-L2-12V
| Manufacturer | |
| Description | Electromechanical Relay DPDT 1A 12VDC 720Ohm Through Hole Low Signal Relays - PCB 1A 12VDC DPDT 2 COIL LATCHING PCB RELAY TELECOM DPDT 1A 12V Relay;E-Mech;Latching;DPDT-NO/NC;Cur-Rtg 0.5/1AAC/ADC;Ctrl-V 12DC;PCB Mnt;10 Pin Relay;E-Mech;Latching;DPDT-NO/NC;Cur-Rtg0.5/1AAC/ADC;Ctrl-V12DC;PCBMnt;10Pin Relay: electromagnetic; DPDT; Ucoil:12VDC; miniature; Series: TQ Signal Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 1 Amp Mounting: PC Board Operating Function: 2 Coil Latching Signal relay 12 VDC 720 Ohm 200 mW THD, TQ2-L2-12V, Panasonic Panasonic 双刀双掷 PCB 高频继电器, 12V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Low Signal Relays - PCB | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 1 Amp | Coil Type | Latching, 2 Coils |
| Isolation | 15 dB at 1 GHz | Operation | 3ms |
| Coil Power | 200 mW | Inductance | 720 |
| Coil Current | 16.7 mA | Release Time | 3ms |
| Power - Rated | 30W|62.5VA | Insertion Loss | 0.6 dB at 1 GHz |
| Visible Output | No | Voltage - Test | 1 |
| Voltage Rating | 110 V | Coil Resistance | 720 Ohm |
| Pushing (MHz/V) | No | Voltage - Rated | 18 VDC |
| Voltage - Supply | 12 V | Switching Voltage | 125VAC, 110VDC - Max |
| Contact Resistance | 50 mohm | Voltage - Clamping | 9VDC |
| Current - Switching | 10 ?A 10 mV DC | Diode Configuration | No |
| Voltage - Breakdown | 1,000 Vrms for 1 min. (Detection current: 10 mA) | Current Rating (Max) | 1 A |
| Td (on/off) @ 25degC | n/a | Contact Voltage (Max) | 1,000 Vrms for 1 min. (Detection current: 10 mA) |
| Insulation Resistance | Min. 10,000M ohm (at 500V DC) | Voltage - Input (Min) | 125 V |
| Power - Average Forward | 200 mW | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 1 A | Contact Rating @ Voltage | 1 A at 30 VDC / 500 mA at 125 VAC |
| Current Rating - Parallel | 1 A 30 V DC, 0.5 A 125 V AC | Power - Output Continuous | 30 |
| Voltage - Protection Level (VP) (2416) | 9 VDC | ||
Mechanical
| Seal | Unsealed | Size | 14 x 9 x 5 mm |
| Depth | 9mm | Pitch | 2.54 |
| Height | 5mm | Length | 14mm |
| Weight | 2.09 g | Packaging | Tube |
| Contact Form | 2 Form C (DPDT-BM) | Mounting Type | Through Hole |
| Package Cooled | DIP | Locking Feature | 是 |
| Contact Material | Silver/Gold Clad | Length - Overall | 14 |
| Package Quantity | 50 | Size / Dimension | 14 x 9 x 5mm |
| Termination Style | Solder Terminal | Number of Contacts | 10 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Spg | 50 | Type | General Purpose Relay |
| Function | 2 Coil Latching | Relay Type | Latching Double Coil |
| Card Standard | Signal Relay | Relay Variant | miniature |
| Electrical Life | 1 A 30 V DC resistive - 210^5, 0.5 A 125 V AC resistive - 10^5 | Number of Units | 1 |
| Connection Method | THD | Contacts Configuration | DPDT |
Environmental
| Temperature | Max. 50°C | Operate Time | 3ms |
| Mechanical Life | 10^8 | Operational Life | 200000 次操作 |
| Shock Resistance | Min. 490 m/s^2 {50G} | Vibration Resistance | 294 m/s2 {30G}, 10 to 55 Hz at double amplitude of 5 mm |
| Operating Temperature | -40 to 70 °C | Maximum Temperature Limit | +70°C |
| Storage/Refrigeration Temperature | 5 to 85% R.H. | ||
