NC2-JPS
| Manufacturer | |
| Description | Relay Sockets & Hardware NC2-flat type PC board socket Conn Relay Socket SKT 10 POS Solder ST Thru-Hole SOCKET PCB FOR FLAT NC2D-JP RELAY SOCKET NC-2 Flat Type PC Board Transistor Drive Slim Power Relay |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Depth | 44.3 | Height | 14.8 |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Number of Rows | 2 | Length - Overall | 25.4 |
| Termination Style | Screw | Number of Contacts | 10 |
| Number of Positions | 8 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | NC | Accessory Type | Socket |
| For Use With/Related Products | NC2D-JP Relays | ||
Documents & Media
Similar Parts

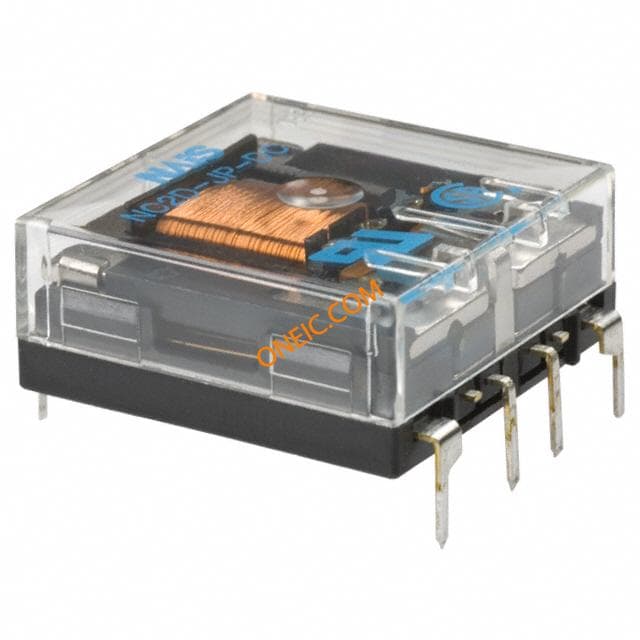

NC2D-JP-DC48V
