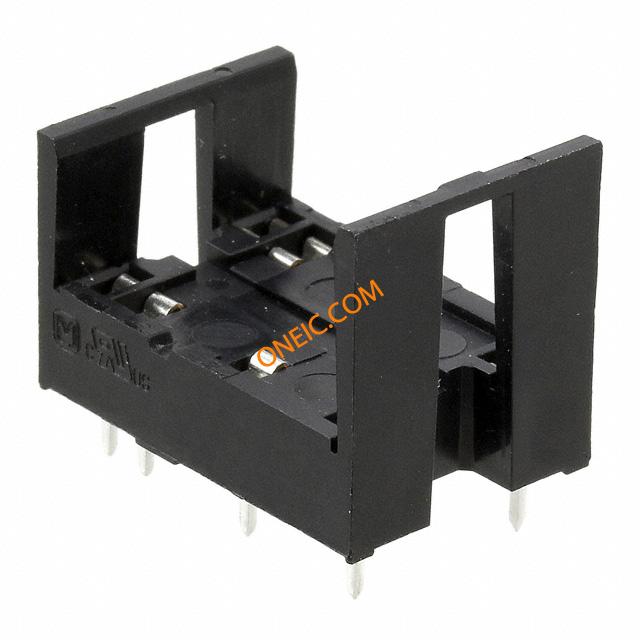

DK2A-PSL2
| Manufacturer | |
| Description | Relay Sockets & Hardware DK Relay Socket 2 Form A Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET RELAY LATCH FOR DK RELAYS RELAY SOCKET*, SURFACE MOUNT, SCREW TERMINAL |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 8 | Insulation Resistance | 1000 |
Mechanical
| Depth | 15 | Height | 17 |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Straight | Mounting Style | Through Hole |
| Number of Rows | 2 | Length - Overall | 23 |
| Termination Style | PCB | Number of Contacts | 8 |
| Number of Positions | 8 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | DK, DY | Accessory Type | Socket, PCB |
| Application Specifics | Use with DK and DY series relays | For Use With/Related Products | DK1A1B and DK2A Relays |
