DK1A-PS
| Manufacturer | |
| Description | Relay Sockets & Hardware FOR DK1 PC MOUNT Conn Relay Socket SKT 6 POS Solder ST Thru-Hole SOCKET RELAY PC MNT FOR DK1A RELAY SOCKET, SPST-NO, 10A Socket,Relay;SingleSideStable;PCBMount;4000V(RMS);10A;23mm DK Relay Socket, 1 Form A DK Series Miniature Relay Socket for SPST Single Side Latching Relay Relay socket, DK1A-PS, Panasonic |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :250VAC | Voltage - Breakdown | 4000V(RMS) |
| Current Rating (Max) | :10A | Insulation Resistance | 1000Milliohms(Min.) |
Mechanical
| Depth | 15 | Width | 15mm |
| Height | 17mm | Length | 23mm |
| Weight | 0 | Packaging | Bulk |
| Termination | Solder | Socket Depth | SingleSideStable |
| Mounting Type | Straight | Connector Type | :Through Hole |
| Mounting Style | PCBMount | Number of Pins | :6 |
| Number of Rows | 2 | Length - Overall | 23 |
| Termination Style | Solder Pin | Number of Contacts | 6 |
| Number of Positions | 4 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | DK, DY | Accessory Type | Sockets |
| For Use With/Related Products | DK1A Relays | ||
Documents & Media
Similar Parts
DK1A-3V-F
Panasonic Electric Works
General Purpose Relays 1 Form A, 3VDC 10A 250VAC 10A 30VDC RELAY GEN PURPOSE SPST 10A 3V Electromechanical Relay SPST-NO 10A 3VDC 45Ohm Through Hole POWER RELAY, 3VDC, 10A, SPST-NO, PCB DKRelay General Purpose Relay Coil Voltage: 3 VDC Contact Configuration: 1A SPST-NO Current: 10 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 3 VDC 200 mW, DK1A-3V-F, Panasonic
DK1A-9V-F
Panasonic Electric Works
General Purpose Relays 1 Form A, 9VDC 10A 250VAC 10A 30VDC RELAY GEN PURPOSE SPST 10A 9V Electromechanical Relay SPST-NO 10A 9VDC 405Ohm Through Hole General Purpose Relay Coil Voltage: 9 VDC Contact Configuration: 1A SPST-NO Current: 10 Amps Mounting: PC Board Operating Function: Single Side Stable DK Series 10 A SPST 9 VDC Through Hole Miniature Single Side Stable Power Relay PCB power relay 9 VDC 200 mW, DK1A-9V-F, Panasonic
DK1A-L-5V-F
Panasonic Electric Works
General Purpose Relays SPST-NO 10A 5VDC Through Hole Relay RELAY GEN PURPOSE SPST 10A 5V Electromechanical Relay SPST-NO 10A 5VDC Through Hole RELAY, SPNO, 10A, 5VDC, THT, LATCHING General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Current: 10 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 5 VDC 200 mW, DK1A-L-5V-F, Panasonic

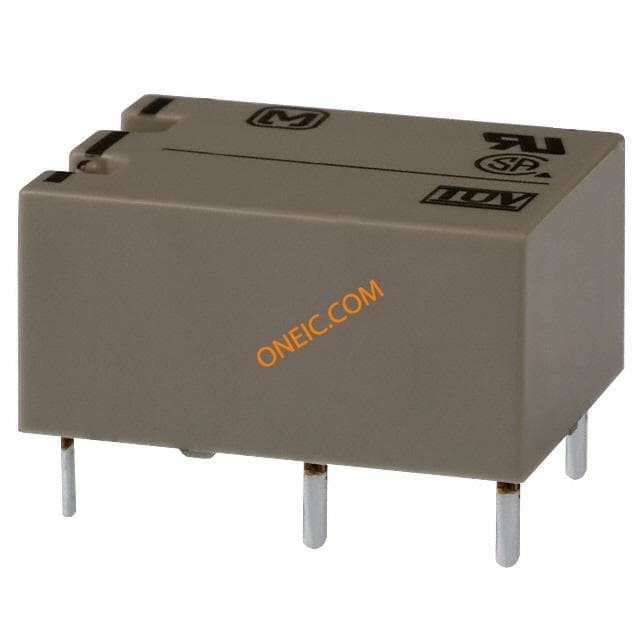

DK1A-L-3V-F
