CB1-D-M-12V
| Manufacturer | |
| Description | Automotive Relays 40A 12VDC 1 FORM C W/DIO SEAL BRKT Electromechanical Relay SPDT 40(NO)/30(NC)A 12VDC 103Ohm Bracket Mount RELAY AUTOMOTIVE SPDT 40A 12V AUTOMOTIVE RELAY, SPDT, 12VDC, 40A CBRelay Automotive Relay Coil Voltage: 12 VDC Contact Configuration: 1C SPDT Current: 40 Amps Mounting: Bracket Operating Function: Single Side Stable CB Series 30 A SPDT 12 VDC Bracket Mount Inner Diode Automotive Relay |
| Category |
Business
| Product Category | Automotive Relays | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Tariff No | 85364110 | ||
Electrical
| Coil Type | With Diode Inside | Coil Power | 1.4 W |
| Coil Current | 117 mA | Power - Rated | 1.4W |
| Visible Output | No | Voltage Rating | 14 |
| Coil Resistance | 103 Ohms | Pushing (MHz/V) | No |
| Voltage - Supply | 12 VDC | Switching Voltage | 14VDC - Nom |
| Vgs(th) (Max) @ Id | 1.2 VDC | Voltage - Clamping | 7VDC |
| Diode Configuration | Yes | Current Rating (Max) | 40(NO)/30(NC) |
| Current - Max/Contact | :40A | Voltage - Input (Min) | 4.2VDC |
| Power - Average Forward | 1.4 W | Vce(on) (Max) @ Vge, Ic | 7 VDC |
| Contact Rating (Current) | 40A | Voltage - Supply (Vcc/Vdd) | :14V |
Mechanical
| Seal | Sealed | Depth | 22 |
| Width | :22mm | Height | 52 |
| Weight | 0.032 | Packaging | Bulk |
| Contact Form | 1 Form C (SPDT-BM) | Height (Max) | :25mm |
| Mounting Type | Bracket Mount | Mounting Style | Panel |
| Contact Material | Silver Alloy | Length - Overall | 30 |
| Termination Style | Clip | Number of Contacts | 5 |
| Contact Termination | Clip | Contact Layout, Typical | SPDT |
Product Info
| Type | Automotive Relays | Features | Diode, Sealed - Fully |
| Relay Type | Non-Latching | ||
Environmental
| Operate Time | 15ms | Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

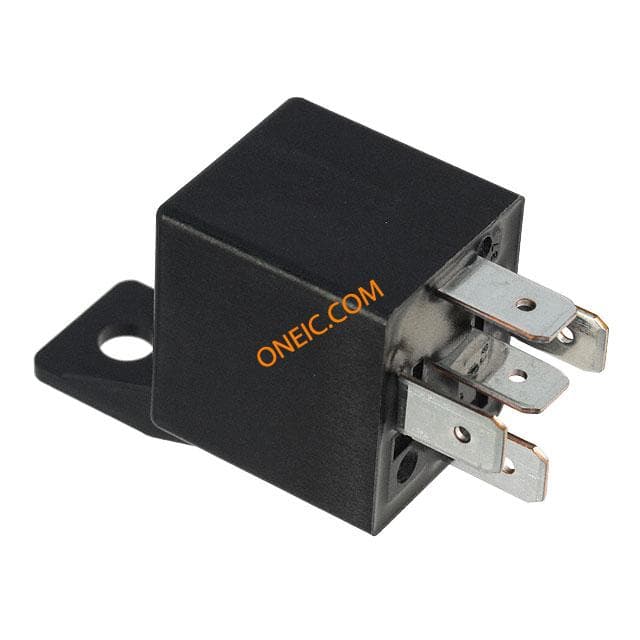

CB1-R-M-12V
