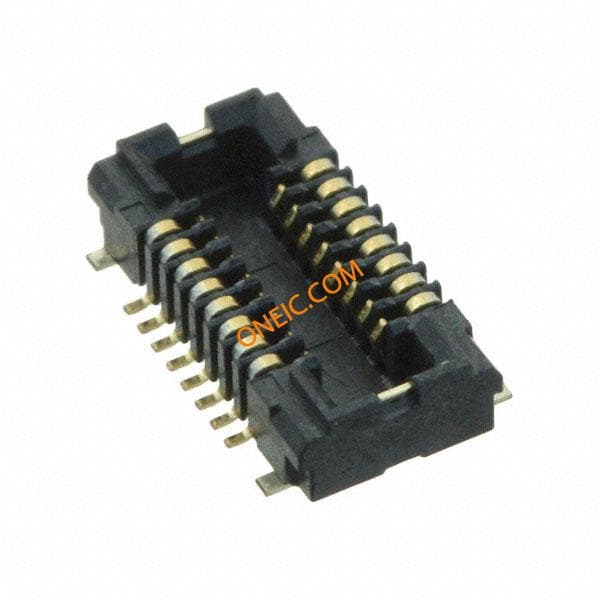

AXT440124
| Manufacturer | |
| Description | Conn Board to Board HDR 40 POS 0.4mm Solder ST SMD Embossed T/R CONN HEADER FPC .4MM 40POS SMD FFC & FPC Connectors CONN HEADER FPC 40 POS 0.4mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 255-3312-1 | Standard Package | 1,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Contact Resistance | 90 mohm |
| Current Rating (Max) | 300 mA | Voltage - Input (Min) | 60VDC|60VAC |
| Voltage - Supply (Min) | 60VDC/60VAC | ||
Mechanical
| Depth | 2.35 mm | Pitch | 0.4 mm |
| Height | 1.24 mm | Packaging | Embossed Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Header, Center Strip Contacts | Contact Finish | Gold Over Nickel |
| Mounting Style | Surface Mount | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 9.9 mm | Termination Style | SMD |
| Height Above Board | 0.049" (1.25mm) | Number of Contacts | 40 |
| Number of Positions | 40 | Mated Stacking Heights | 1.5mm, 2.5mm |
Product Info
| Type | Board to Board | Gender | HDR |
| Series | P4S | Features | Solder Retention |
| Product Type | Headers | ||
Environmental
| Operating Temperature | -55C to 85C | ||
