AXT424164
| Manufacturer | |
| Description | FFC & FPC Connectors CONN HEADER .4MM 24POS SMD CONN HEADER .4MM 24POS SMD Conn Board to Board HDR 24 POS 0.4mm Solder ST SMD Embossed T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 255-4209-1 | Product Category | FFC & FPC Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 60 V | Current Rating (Max) | 0.3 A |
Mechanical
| Pitch | 0.4 mm | Packaging | Reel |
| Mounting Type | Vertical | Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) | Termination Style | SMD |
| Height Above Board | 0.049" (1.25mm) | Number of Contacts | 24 |
| Number of Positions | 24 | Mated Stacking Heights | 1.5mm, 2.5mm |
Product Info
| Gender | Male | Series | P4S |
| Features | Solder Retention | Product Type | Headers |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts

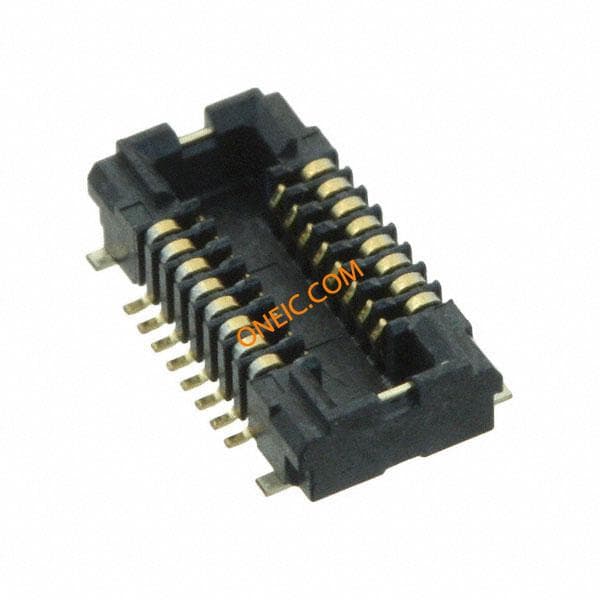

AXT324164
