AXK790347G
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN SOCKET BRD/BRD 90 POS 0.4mm CONN SOCKET BRD/BRD .4MM 90POS Conn Board to Board SKT 90 POS 0.4mm Solder ST SMD Embossed T/R |
| Category |
Business
| Product Category | Board to Board & Mezzanine Connectors | Standard Package | 1,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Voltage Rating | 60 V | Current Rating (Max) | 0.3 A |
Mechanical
| Pitch | 0.4 mm | Packaging | Reel |
| Mounting Type | Vertical | Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) | Termination Style | SMD |
| Height Above Board | 0.095" (2.41mm) | Number of Contacts | 90 |
| Number of Positions | 90 | Mated Stacking Heights | 2.5mm |
Product Info
| Series | P4 | Product Type | Sockets |
Documents & Media
Similar Parts
AXK890215WG
Panasonic Electric Works
基板間およびメザニンコネクタ CONN HEADER FPC 90 POS 0.4mm CONN HEADER FPC .4MM 90POS SMD Board to Board & Mezzanine Connectors CONN HEADER FPC 90 POS 0.4mm Conn Board to Board HDR 90 POS 0.4mm Solder ST SMD Embossed T/R
AXK890115WG
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN HEADER FPC 90 POS 0.4mm CONN HEADER FPC .4MM 90POS SMD Conn Board to Board HDR 90 POS 0.4mm Solder ST SMD Embossed T/R

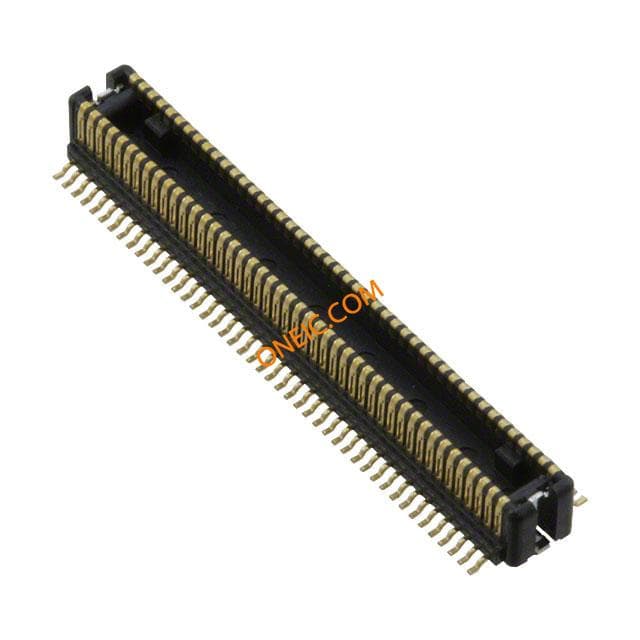

AXK890225WG
