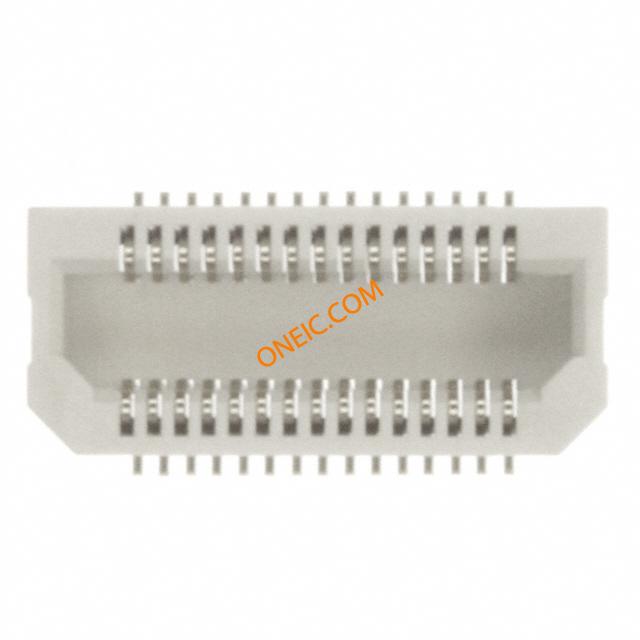

AXK5S30347YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN SOCKET P5KS 30 POS 0.5mm Conn Board to Board SKT 30 POS 0.5mm Solder ST SMD Reel CONN SOCKET P5KS .5MM 30POS SMD P5KS Series 30 Position 0.5 mm Pitch Board to Board SMT Socket Connector |
| Category |
Business
| Other Names | 255-2563-2 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Contact Resistance | 60 |
| Current Rating (Max) | 0.5 A | Voltage - Input (Min) | 60VDC|60VAC |
Mechanical
| Depth | 4.6 | Pitch | 0.5 mm |
| Height | 6.05 | Packaging | Reel |
| Termination | Solder | Mounting Type | Vertical |
| Connector Type | Socket, Center Strip Contacts | Contact Finish | Gold |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Stacking Method | 7 mm | Contact Material | Copper Alloy |

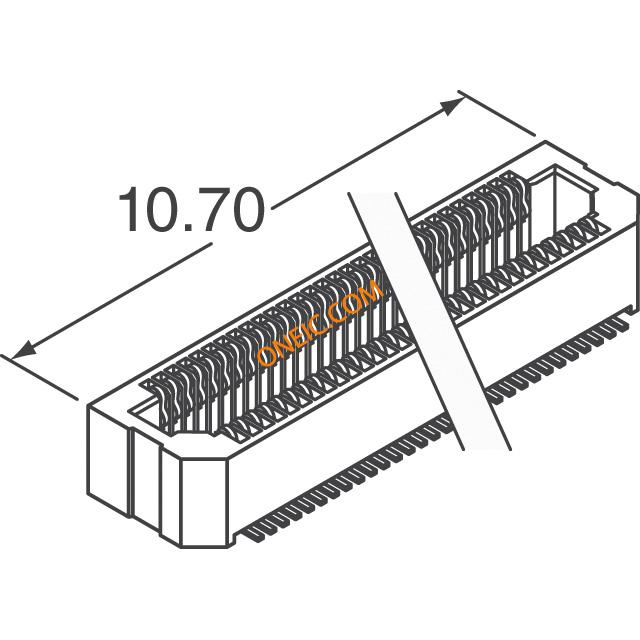

| Housing Material | Resin | Length - Overall | 10.7 |
| Termination Style | SMD | Height Above Board | 0.238" (6.05mm) |
| Number of Contacts | 30 | Number of Positions | 30 |
| Height - Seated (Max) | 0.238" (6.05mm) | Mated Stacking Heights | 7mm, 8mm, 9mm |
Product Info
| Type | Board to Board | Gender | SKT |
| Series | P5 | Product Type | Sockets |
Environmental
| Mating Cycles | 7mm, 8mm, 9mm | ||
Documents & Media
Similar Parts
AXK6S30537YG
Panasonic Electric Works
基板間およびメザニンコネクタ CONN HEADER BRD/BRD 30 POS 0.5mm CONN HEADER BRD/BRD .5MM 30POS Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 30 POS 0.5mm Conn Board to Board HDR 30 POS 0.5mm Solder ST SMD Reel

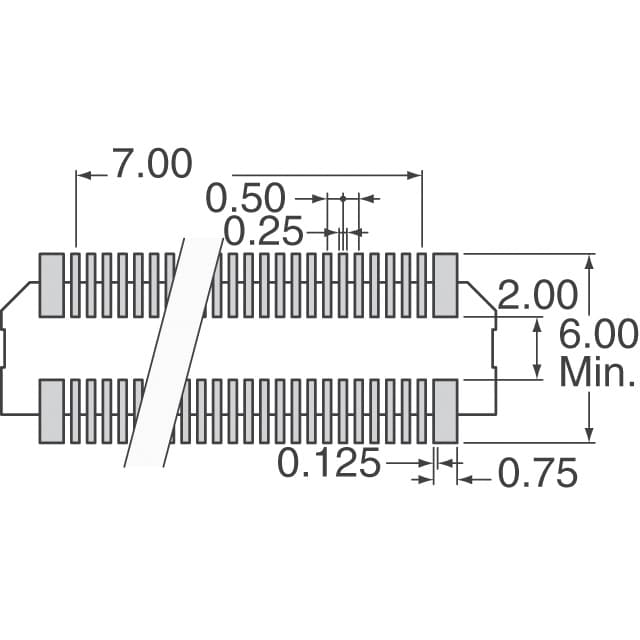

AXK6S30547YG
Panasonic Electric Works
基板間およびメザニンコネクタ CONN HEADER P5KS 30 POS 0.5mm Conn Board to Board HDR 30 POS 0.5mm Solder ST SMD Reel CONN HEADER P5KS .5MM 30POS SMD Board to Board & Mezzanine Connectors CONN HEADER P5KS 30 POS 0.5mm AXK6S,P5KS,Header,0.5mmpitch,30-pin,Ni-barrier,,RoHSconforming, P5KS Series 30 Position 0.5 mm Pitch Board to Board SMT Header Connector

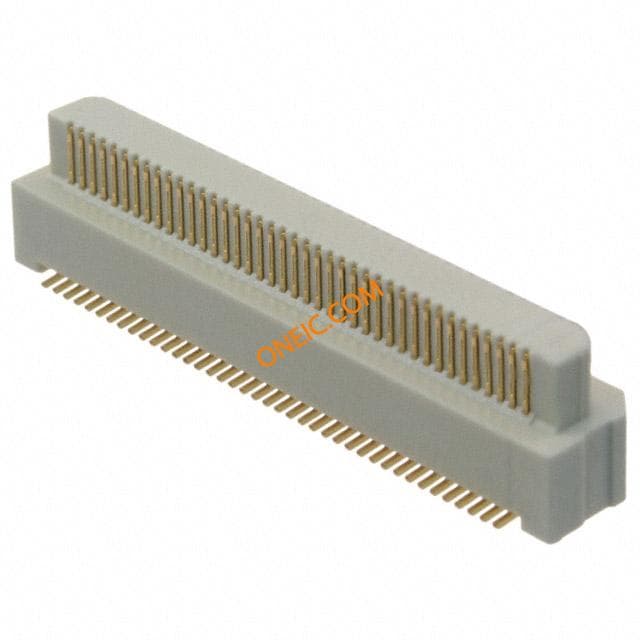

AXK6S30637YG
