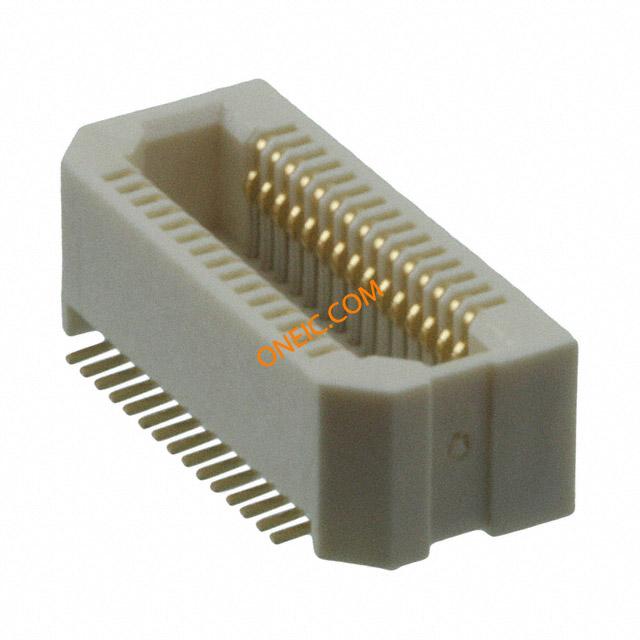

点击放大查看
AXK5S30247YG
| Manufacturer | |
| Description | 基板間およびメザニンコネクタ Conn B-B SKT 30 POS 0.5mm Conn Board to Board SKT 30 POS 0.5mm Solder ST SMD Embossed T/R CONN FPC 30POS SOCKET SMT CONN SOCKET BRD/BRD .5MM 30POS Board to Board & Mezzanine Connectors Conn B-B SKT 30 POS 0.5mm |
| Category |
Business
| Other Names | 255-3234-1 | Standard Package | 1,000 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Contact Resistance | 60 |
| Current Rating (Max) | 500 mA | Voltage - Input (Min) | 60VDC|60VAC |
Mechanical
| Depth | 4.6 | Pitch | 0.020" (0.50mm) |
| Height | 3.55 | Packaging | Embossed Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Socket, Center Strip Contacts | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Resin | Length - Overall | 10.7 |
| Termination Style | SMD | Height Above Board | 0.140" (3.55mm) |
| Number of Contacts | 30 | Number of Positions | 30 |
| Mated Stacking Heights | 4.5mm, 5.5mm, 6.5mm | ||
Product Info
| Type | Board to Board | Gender | SKT |
| Series | P5 | Product Type | Sockets |
Documents & Media
