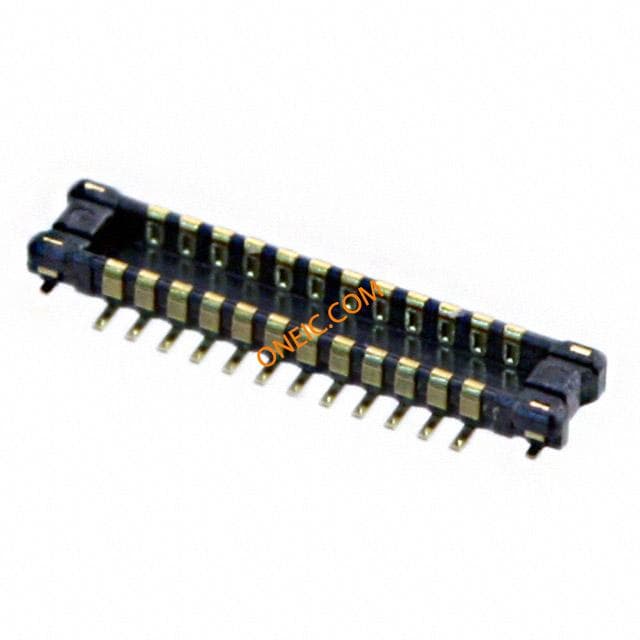

AXE524124
| Manufacturer | |
| Description | Conn Board to Board SKT 24 POS 0.4mm Solder ST SMD Embossed T/R CONN SOCKET .4MM 24 POS SMD Board to Board & Mezzanine Connectors Socket 0.4mm,24-pin w/o positioning boss 24 Position 0.4 mm Pitch Dual Row Board to Board Surface Mount Socket Connector |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 255-3128-1 | Standard Package | 1,000 |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Contact Resistance | 90 |
| Current Rating (Max) | 300 mA | Insulation Resistance | 1000 MOhms |
| Voltage - Input (Min) | 60VDC|60VAC | ||
Mechanical
| Depth | 2.2 | Pitch | 0.4 mm |
| Height | 0.77 | Packaging | Embossed Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Socket, Center Strip Contacts | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 7.3 |
| Termination Style | SMD | Height Above Board | 0.030" (0.75mm) |
| Number of Contacts | 24 | Number of Positions | 24 |
| Height - Seated (Max) | 0.030" (0.75mm) | Mated Stacking Heights | 0.8mm, 1mm |
Product Info
| Type | Board to Board | Gender | SKT |
| Series | A4S | Features | Solder Retention |
| Main Purpose | Solder Retention | ||
Environmental
| Mating Cycles | 0.8mm, 1mm | ||
