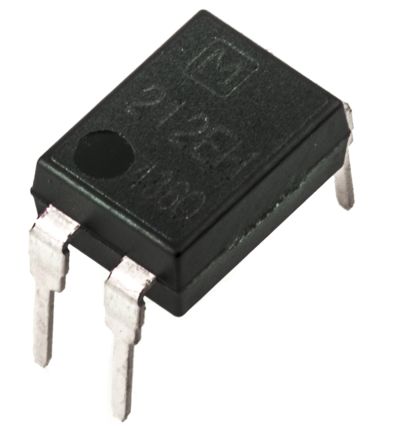

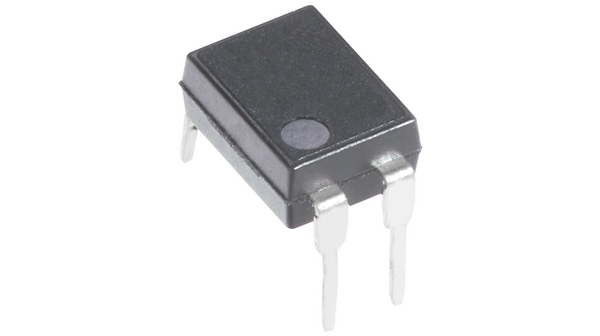

AQY212EH
| Manufacturer | |
| Description | Solid State Relays - PCB Mount 60V 550mA DIP Form A Norm-Open Relay SSR 50mA 1.5V DC-IN 0.55A 60V AC/DC-OUT 4-Pin PDIP Tube RELAY OPTO SPST 550MA 4 DIP 60V 550mA PCB Mount SPST-NO PhotoMOS Solid State Relay, 60V PHOTOMOS RELAY, 60V, 550mA PhotoMOS relay AQY 60 VAC/DC 550 mA, AQY212EH, Panasonic Panasonic 550 mA PCB（印刷电路板）安装安装 单极常开 固态继电器, MOS 照片输出, 60 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Solid State Relays - PCB Mount | Standard Package | 100 |
| Factory Pack Quantity | 100 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85364110 | ||
Electrical
| Output | MOSFET | Circuit | SPST-NO (1 Form A) |
| Input Type | DC | Output Type | AC|DC |
| Load Current | 550mA | Turn On Time | 4 ms |
| Isolation Type | Photocoupler | Voltage - Load | 0 ~ 60 V |
| Voltage Rating | 1.5 | Current - Output | 0.55 |
| Voltage - Supply | 1.5 V to 5 V | Voltage - Isolation | :5kV |
| Current Rating (Max) | 550 mA | Voltage - Input (Min) | 1.14VDC |
| Voltage - Output (Max) | 60 | Voltage - Supply (Min) | 60 V |
| Current - Off State (Max) | 1 μA | Current - Quiescent (Max) | 0.55 A |
| On-State Resistance (Max) | 2.5 Ohm | Current - Input Bias (Max) | 50 mA |
| Current - DC Forward (If) (Max) | :1.2mA | ||
Mechanical
| Depth | 6.4mm | Width | 6.4 |
| Height | 3.2mm | Length | 4.78mm |
| Weight | 0 | Packaging | Tube |
| Lead Style | Through Hole | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | DIP-4 |
| Length - Overall | 4.78 | Package Quantity | PDIP |
| Termination Style | Solder Pin | Number of Positions | 4 |
| Shell Size - Insert | 3.2 | Contact Layout, Typical | SPST-NO |
| Supplier Device Package | 4-DIP | ||
Product Info
| Relay Type | Relay | Circuit Type | 1 Form A |
| Product Type | PCB Mount | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | 85 | ||
