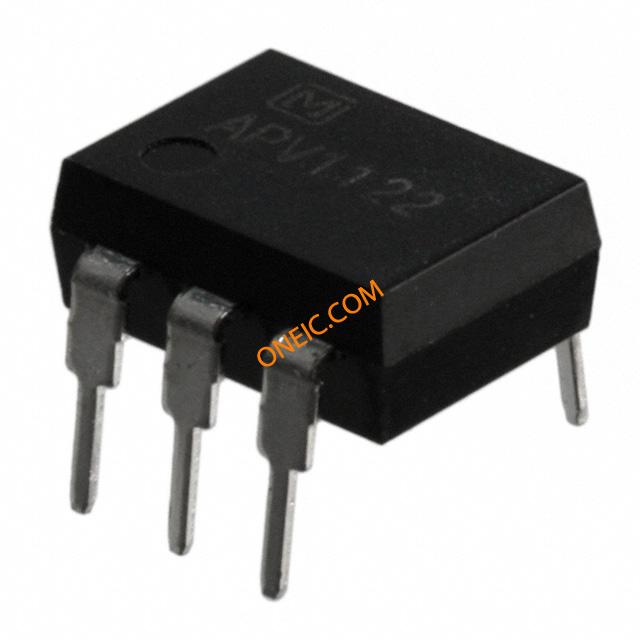

APV1122
| Manufacturer | |
| Description | Photodiode Output Optocouplers 5000VAC 8.7V DRIVER Optocoupler DC-IN 1-CH Linear Photovoltaic DC-OUT 6-Pin DIP Tube OPTOCOUPLER PHOTOVO 5KVRMS 6DIP PhotovoltaicMOSFETDriver,6-pinDIP, |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 255-2657 | Product Category | Photodiode Output Optocouplers |
| Standard Package | 50 | Factory Pack Quantity | 50 |
| Standard Package Name | DIP | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
Electrical
| Output | Photovoltaic | Fall Time | 0.1 ms |
| Input Type | DC | Output Type | DC |
| Rise Time (Typ) | 0.4 ms | Voltage - Supply | 1.5 V |
| Number of Channels | 1 Channel | LED Forward Current | 3 mA |
| Voltage - Isolation | 5000 Vrms | Voltage - Input (Min) | 8.7V |
| Power - Average Forward | 75 mW | Power Dissipation (Max) | 75 mW |
| Voltage Regulation - Load | 5 | Current - Input Bias (Max) | 50 |
| Current - Output / Channel | 14µA | Current - DC Forward (If) (Max) | 3 mA |
| Voltage - Reverse Standoff (Typ) | 5 V | Voltage - Forward (Vf) (Max) @ If | 1.5 V |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V | Current - Average Rectified (Io) (per Diode) | 50mA |
Mechanical
| Width | 6.4 | Packaging | Bulk |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Package / Case | DIP-6 | Length - Overall | 8.8 |
| Package Quantity | DIP | Number of Positions | 6 |
| Shell Size - Insert | 3.9 | ||
Product Info
| Series | APV1 | Manufacturer | Panasonic Industrial Devices |
| Printed Circuit Board | 6 | ||
Environmental
| Operating Temperature | + 85 C | ||
