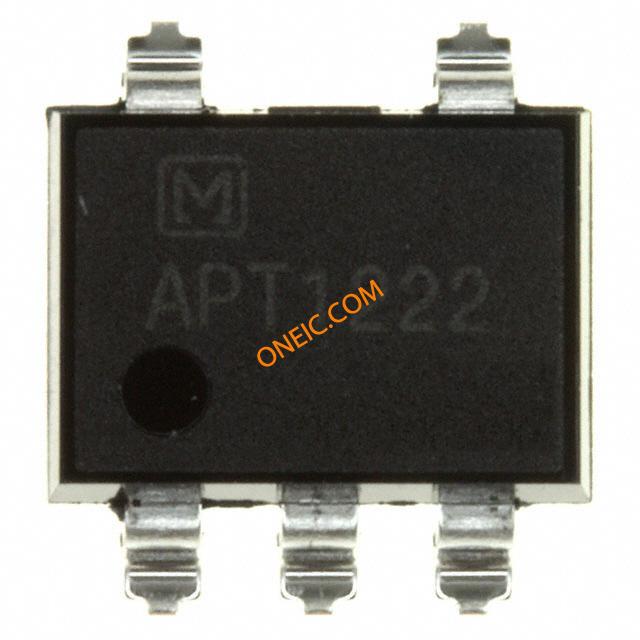

APT1222A
| Manufacturer | |
| Description | Triac & SCR Output Optocouplers AC 600V 100mA Random Coupler SSR Optocoupler Triac AC-OUT 1-CH 600VDRM 5-Pin PDIP SMD Tube OPTOCOUPLER TRIAC OUT 600V 6SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Triac & SCR Output Optocouplers | Standard Package | 50 |
| Factory Pack Quantity | 50 | Standard Package Name | PDIP SMD |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output | PhotoTriac | Output Type | AC |
| Turn On Time | 100 us | Power - Rated | 500 mW |
| Voltage - Supply | 1.21 V | Number of Channels | 1 Channel |
| Current - Hold (Ih) | 300µA | LED Forward Current | 50 mA |
| LED Forward Voltage | 1.21 V | Voltage - Isolation | 5000 Vrms |
| Voltage - Off State | 600V | Zero Crossing Circuit | No |
| Power - Average Forward | 500 mW | Power Dissipation (Max) | 500 |
| Voltage Regulation - Load | 6 | Current - Input Bias (Max) | 50 |
| Current - Output / Channel | 100mA | Current - DC Forward (If) (Max) | 50 mA |
| Current - LED Trigger (Ift) (Max) | 10 mA | Current - Gate Trigger (Igt) (Max) | 10mA |
| Current - Continuous Drain (Id) @ 25degC | 100 mA | Current - Average Rectified (Io) (per Diode) | 50mA |
| Voltage - Output Difference (Typ) @ Distance | 600 V | ||
Mechanical
| Width | 6.4 | Height | 3.4 mm |
| Length | 8.8 mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Package / Case | DIP-6 | Length - Overall | 8.8 |
| Package Quantity | PDIP SMD | Number of Positions | 5 |
| Shell Size - Insert | 3.4 | Supplier Device Package | 6-SMD |
Product Info
| Manufacturer | Panasonic Industrial Devices | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | + 100 C | ||
