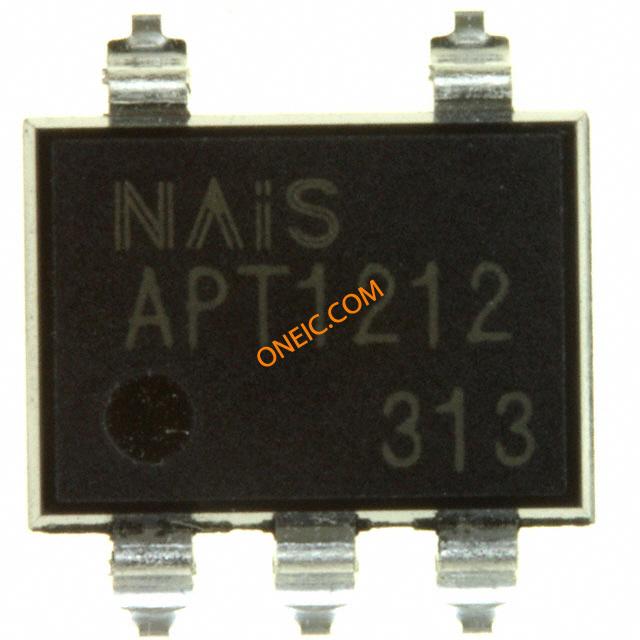

APT1212A
| Manufacturer | |
| Description | Triac & SCR Output Optocouplers AC TY 600V 100mA 50V Phototriac Coupler OPTOCOUPLER TRIAC 600V 6SMD ZC Optocoupler Triac AC-OUT 1-CH 600VDRM 5-Pin PDIP SMD Tube |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Triac & SCR Output Optocouplers | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | PhotoTriac | Output Type | AC |
| Turn On Time | 100 us | Power - Rated | 500 mW |
| Voltage - Supply | 1.21 V | Voltage - I/O Low | 50 V |
| Number of Channels | 1 Channel | Current - Hold (Ih) | 300µA |
| LED Forward Current | 50 mA | LED Forward Voltage | 1.21 V |
| Voltage - Isolation | 5000 Vrms | Voltage - Off State | 600V |
| Zero Crossing Circuit | Yes | Power - Average Forward | 500 mW |
| Current - Output / Channel | 100mA | Current - DC Forward (If) (Max) | 50 mA |
| Current - LED Trigger (Ift) (Max) | 10 mA | Current - Gate Trigger (Igt) (Max) | 10mA |
| Current - Continuous Drain (Id) @ 25degC | 100 mA | Current - Average Rectified (Io) (per Diode) | 50mA |
| Voltage - Output Difference (Typ) @ Distance | 600 V | ||
Mechanical
| Width | 6.4 mm | Height | 3.4 mm |
| Length | 8.8 mm | Packaging | Tube |
| Mounting Type | Surface Mount | Package / Case | DIP-6 |
| Supplier Device Package | 6-SMD | ||
Product Info
| Manufacturer | Panasonic Industrial Devices | ||
Environmental
| Operating Temperature | + 100 C | ||
