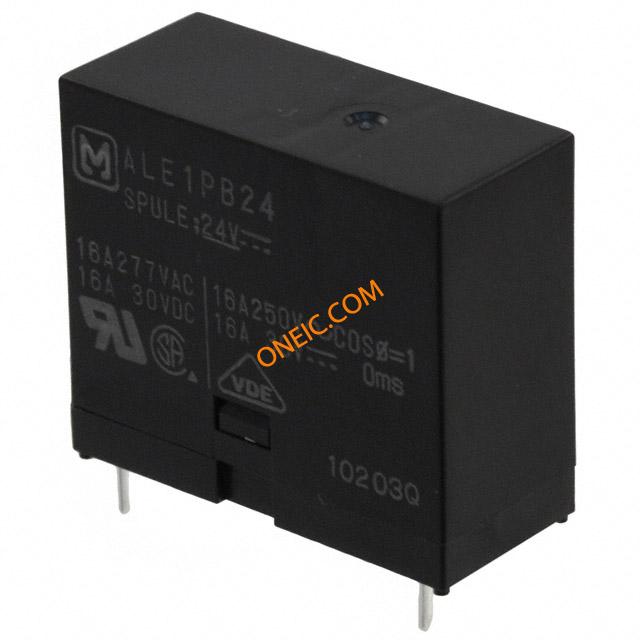

ALE1PB06
| Manufacturer | |
| Description | General Purpose Relays 1 Form A, 6VDC 400 mW Electromechanical Relay SPST-NO 16A 6VDC 90Ohm Through Hole RELAY GEN PURPOSE SPST 16A 6V Power Relay Coil Voltage: 6 VDC Contact Configuration: 1A SPST-NO Current: 16 Amps Mounting: PC Board Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 255-2369 | Product Category | General Purpose Relays |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Speed | 20 cpm | Current | 16 Amps |
| Coil Type | Single Side Stable | Frequency | 16 A 277 V AC |
| Coil Power | 400 mW | Coil Current | 66.7 mA |
| Release Time | 20ms | Power - Rated | 4.432kVA |
| Power - Output | 4,432 V A | Visible Output | No |
| Coil Resistance | 90 Ohms | Pushing (MHz/V) | No |
| Voltage - Supply | 6 V | Switching Voltage | 277VAC - Max |
| Contact Resistance | 100 mohm | Vgs(th) (Max) @ Id | 0.3 VDC |
| Voltage - Clamping | 4.5VDC | Current - Switching | 100 mA, 5 V DC |
| Diode Configuration | No | Voltage - Breakdown | 4,000 Vrms for 1 min. |
| Current Rating (Max) | 16 A | Insulation Resistance | Min. 1,000 Mohm (at 500 V DC) |
| Voltage - Input (Min) | 0.3VDC | Varistor Voltage (Min) | Min. 10,000 V |
| Power - Average Forward | 400 mW | Vce(on) (Max) @ Vge, Ic | 4.5 VDC |
| Contact Rating (Current) | 16 A | Voltage - Supply, Battery | 8.7 VDC |
| Current - Average Rectified (Io) | 66.7 mA | Voltage - Gate Trigger (Vgt) (Max) | 4.5 VDC |
Mechanical

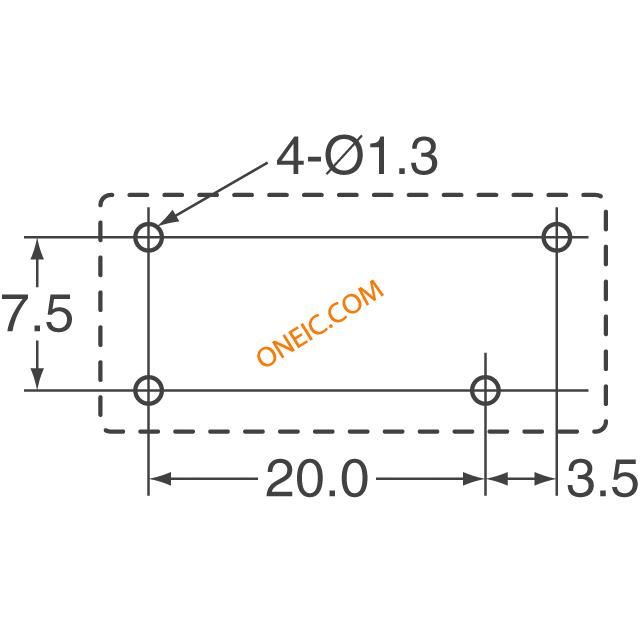

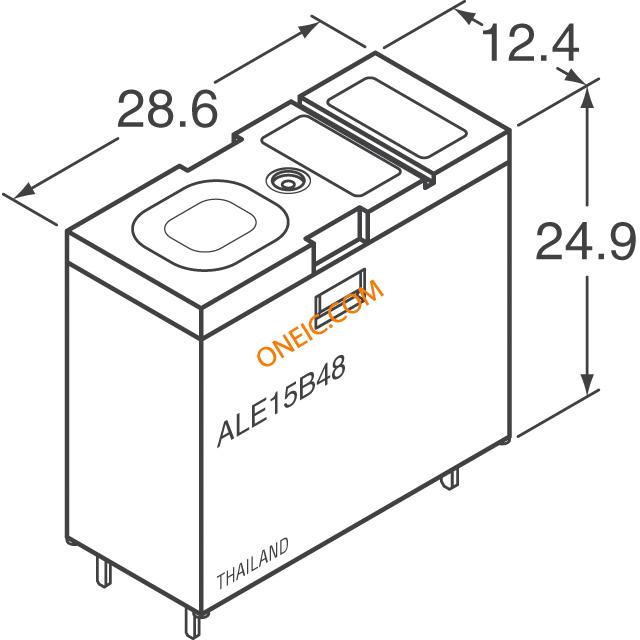

| Seal | Unsealed | Depth | 12.4 |
| Height | 24.9 | Weight | Approx. 17 g .60 oz |
| Packaging | Tube | Insulation | Class B insulation |

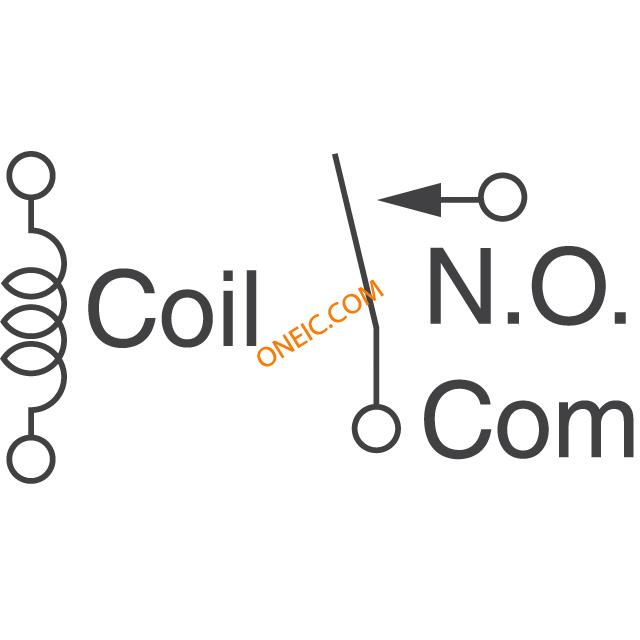

| Contact Form | 1 Form A (SPST-NO) | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Contact Material | Silver Tin Oxide |
| Length - Overall | 28.6 | Termination Style | Solder Terminal |
| Number of Contacts | 4 | Contact Termination | Solder Terminal |
| Contact Layout, Typical | SPST-NO | ||
Product Info
| Type | Power Relay | Features | Insulation - Class B |
| Function | Single Side Stable | Relay Type | Non-Latching |
| Card Standard | Power Relay | Electrical Life | 10^5 |
Environmental
| Operate Time | 20ms | Humidity Range | 5 to 85% R.H. |
| Mechanical Life | 2 10^6 | Shock Resistance | Min. 200 m/s^2{20 G} |
| Operating Temperature | -40°C ~ 85°C | Thermal Resistance @ Natural | Max. 55C Max. 45C (200 mW type) |
| Vibration Resistance (Functional) | 10 to 55Hz at double amplitude of 1.5mm | Vibration Resistance (Destructive) | 10 to 55Hz at double amplitude of 1.5mm |
