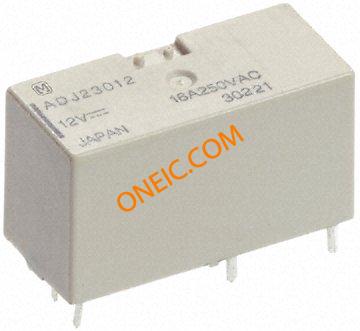

ADJ54024
| Manufacturer | |
| Description | General Purpose Relays 2c 2-Coil Latch 24V Seal DPDT PCB Mount Latching Relay, 24V dc For Use In Power Applications Electromechanical Relay DPDT 16A 24VDC 2.304KOhm Through Hole ADJ(DJ) RELAY (SEALED, 2C, 2-COI General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: PC Board Operating Function: 2 Coil Latching Panasonic 双刀双掷 PCB（印刷电路板）安装 自锁继电器, 24V dc, 适用于电源应用 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | General Purpose Relays | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 10 Amps | Coil Type | Latching Dual Coil |
| Frequency | 16 A 250V AC (1 Form C, 1 Form A, 1 Form B), 10 A 250V AC (2 Form C, 2 Form A, 2 Form B, 1 Form A 1 Form B) | Coil Power | 250mW |
| Release Time | Approx. 10ms | Isolation Type | 4000V rms |
| Power - Output | 4,000 V A | Coil Resistance | 2.304 K Ohms |
| Voltage - Rated | 31.2 VDC | Voltage - Supply | 24 V |
| Switching Voltage | 250 VAC | Contact Resistance | 100 mohm |
| Power - Peak Pulse | 4 kVA | Current - Switching | 10 A |
| Voltage - Breakdown | 4,000 Vrms for 1 min. | Current Rating (Max) | 16 A |
| Power - Output Surge | 4000 VA | Insulation Resistance | Min. 1,000 Mohm (at 500 V DC) |
| Varistor Voltage (Max) | 16.8 VDC | Voltage - Switching AC | 250V 交流 |
| Power - Average Forward | 250 mW | DC Resistance (DCR) - Series | 2304 ohm |
| Current - Peak Pulse (8/20us) | 10 A | Voltage - Protection Level (VP) (2416) | 16.8 VDC |
Mechanical
| Depth | 13mm | Height | 16.5mm |
| Length | 29mm | Weight | Approx. 14 g .49 oz |
| Packaging | Tube | Contact Form | 2 Form C (DPDT-BM) |
| Mounting Type | PCB | Terminal Type | Through Hole |
| Mounting Style | Through Hole | Contact Material | Silver Tin Oxide |
| Size / Dimension | 29 x 16.5 x 13mm | Protective Height | Sealed type |
| Termination Style | Solder Pin | Contact Termination | Solder Terminal |
| Insulation Material | 4kV rms | Contact Layout, Typical | DPDT |
Product Info
| Type | Relays | Series | * |
| Features | Sealed Construction | Function | 2 Coil Latching |
| Application | 电源 | Test Button | Without test button |
| Card Standard | General Purpose Relay | Electrical Life | 1 Form C, 1 Form A, 1 Form B: 10^5 (at 16A 250V AC); 2 Form C, 2 Form A, 2 Form B, 1 Form A 1 Form B: : 10^5 (at 10A 250V AC) |
| Application Specifics | Power | ||
Environmental
| Temperature | 40C to +70C, 40F to +158F | Operate Time | Approx. 10ms |
| Humidity Range | 5 to 85% R.H. | Mechanical Life | 5000000 (Mechanical) cycles |
| Operational Life | 5000000（机械）次循环 | Shock Resistance | Min. 1,000 m/s^2{100 G} |
| Operating Temperature | +70°C | Vibration Resistance (Functional) | 10 to 55Hz at double amplitude of 2.0mm |
| Vibration Resistance (Destructive) | 10 to 55Hz at double amplitude of 3.0mm | ||
