DP-101-N
| Manufacturer | |
| Description | SENSOR DIGITAL PRESSURE NPN SENSOR;STD VERSION;-100.0 TO +100KPA LOW-PRESSURE TYPE;M5 FEMALE + NPT1/8 MALE Pressure Sensor -100kPa to 100kPa Gage 4-Pin DEGITAL PRESSURE, STD VERSION, NPN, -100.0 TO +100KPa LOW-PRESSURE TYPE, M5 FEMALE + NPT1/8 MALE SENSOR,STDVERSION,-100.0TO+100KPALOW-PRESSURETYPE,M5FEMALE+NPT1/8MALE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1110-2142 | Standard Package | 1 |
Compliance
| RoHS | Compliant | Tariff No | 90262020 |
Electrical
| Output | Open Collector | Voltage - Supply | 12 V ~ 24 V |
| Current - Switching | 100mA | Voltage - Switching DC | 30VDC |
Mechanical
| Weight | 0 | Port Size | Female, M5 |
| Termination | Connector | Package / Case | Module |
| Primary Material | Pressure | Termination Style | Connector |
Product Info
| Function | Pressure | Manufacturer | DP-100 |
| Measuring Range | 100kPa | ||
Environmental
| Pressure Type | Gauge | Ingress Protection | IP40 |
| Operating Pressure | ±14.5 PSI, ±100 kPa | Operating Temperature | -10°C ~ 50°C |
Similar Parts
MS-DP1-3
Panasonic Electric Works - ACSD
FOR DP-100 FRONT PROTECT COVER ACCESSORY;FRONT PROTECTION COVER FOR DP-100 SERIES MOUNTING BRACKET, DP-100 SERIES SENSORS ACCESSORY,FRONTPROTECTIONCOVERFORDP-100SERIES
$15.6475
Details

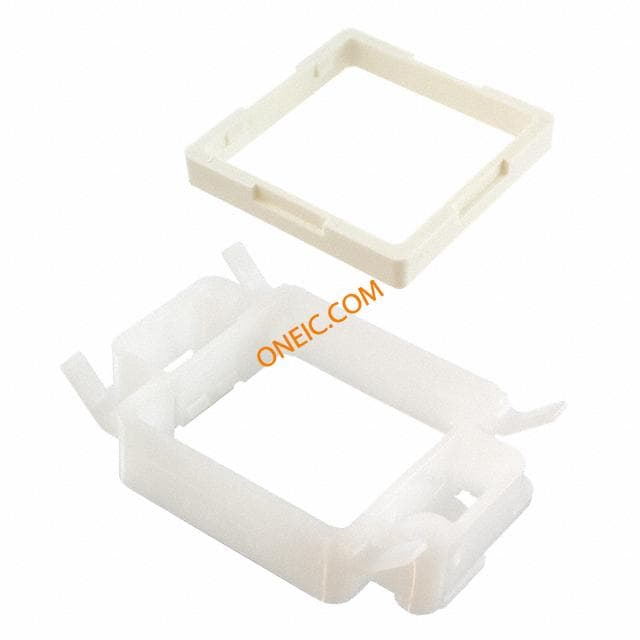

MS-DP1-2
Panasonic Electric Works - ACSD
FOR DP-100 PANEL MOUNT BRACKET MOUNTING BRACKET, DP-100 SERIES SENSORS ACCESSORY,PANELMOUNTINGBRACKETFORDP-100SERIES
$23.5280
Details
CN-14A-C2
Panasonic Electric Works - ACSD
CONNECTOR ATTACHED CABLE 2M SENSOR CONNECTOR, DP-100 & FX-100 SENSOR Cable,Sensor,2MeterCableWith4PinConnectorforDP-100,FX-100,PM-64 Cable assembly, 2 m, 3.7 mm, 0.2 mm² 4-Kerne, CN-14A-C2, Panasonic
$57.6121
Details
