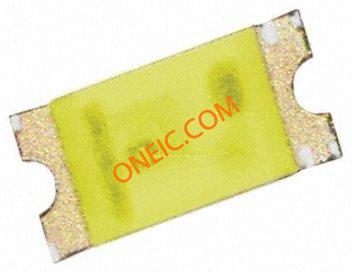

LNJ037X8ARA
| Manufacturer | |
| Description | LED Uni-Color White 2-Pin Chip LED Standard LEDs - SMD LED WHT HI-BRT ESS LED WHITE HIGH BRIGHT ESS SMD LED, White, SMD, Top view Panasonic 白色 LED, , 3.2 V, 60 mcd 1608 (0603) 贴装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LNJ037X8ARATR | Standard Package | 5,000 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85414010 |
Electrical
| Lamp Type | :0.8mm x 1.1mm | Optic Size | 1.6 mm x 0.8 mm x 0.2 mm |
| Luminous Flux | 60 mcd | Power - Rated | 40 mW |
| Current - Output | 5mA | Voltage - Supply | 2.9V |
| LED Forward Current | 10 mA | LED Forward Voltage | 2.9 V |
| Millicandela Rating | 60mcd | Wavelength - Dominant | N/Rnm |
| Current - DC Forward (If) (Max) | :5mA | ||
Mechanical
| Color | White | Height | 0.20mm |
| Weight | 0.001 | LED Color | White |
| Packaging | Reel | Lens Style | Rectangular |
| Mounting Type | Surface Mount | Mounting Style | Top Mount |
| Number of Pins | 2 | Package / Case | 2Chip LED |
| Lens Style/Size | Rectangle with Flat Top, 1.1mm x 0.8mm | Package Quantity | 1.6 x 0.8mm |
| Size / Dimension | 1.60mm L x 0.80mm W | Illumination Color | White |
| Number of Positions | 2 | ||
Product Info
| Type | Uni-Color | Number of LEDs | 1 |
Environmental
| Luminous Flux @ Current/Temperature | 100 mcd | ||
