EXC-ML16A270U
| Manufacturer | |
| Description | Ind Chip Bead Molded 27Ohm 25% 100MHz Ferrite 4A 0603 Embossed Carrier T/R Ferrite Beads Chip 27Ohm 25% 100MHz 4A 6mOhm DCR 0603 Embossed Carrier T/R BEAD CORE 27 OHM 4A 0603 SMD EMI Filter Beads, Chips & Arrays 27 OHM 25% MLC BEAD CORE FERRITE BEAD, 0.006OHM, 4A, 0603, FULL REEL |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads | Other Names | P10436DKR |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85049011 | ||
Electrical
| Impedance | 27 Ohm | Tolerance | 25 % |
| Filter Type | Differential Mode - Single | Test Frequency | 100 MHz |
| Current Rating - DC | :4A | DC Resistance (DCR) | 6 mOhm Max |
| Current Rating (Max) | 4 A | Impedance @ Frequency | 27 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.006ohm | Resistance - Initial (Ri) (Min) | 6 mOhm |
Mechanical
| Depth | 1 | Width | 0.8 mm |
| Height | 1 mm | Weight | 0 |
| Packaging | Embossed Carrier Tape and Reel | Height (Max) | 0.039" (1.00mm) |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Connector Type | :Surface Mount | Package / Case | 0603 |
| Length - Overall | 1.8 | Mounting Feature | :SMD |

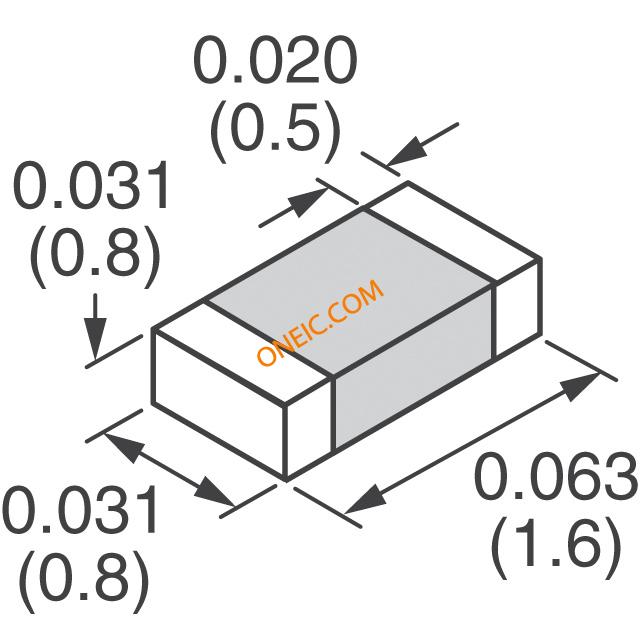

| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Termination Style | SMD/SMT |
Product Info
| Type | Chip Bead | Series | :EXCML |
Environmental
| Operating Temperature | - 5 C to + 40 C | ||
