EXC-ELSA39V
| Manufacturer | |
| Description | Ind Bead 80Ohm 100MHz 7A AXL T/R Ferrite Beads Axial 80Ohm 100MHz 7A 10mOhm DCR T/R BEAD CORE SNGL 3.5X9MM AXIAL T/B EMI Filter Beads, Chips & Arrays 80 OHM AXIAL BEAD CORE Ferrite Beads Axial Bead 80Ohm 100MHz 7A T/R FERRITE BEAD, 0.01OHM, 7A, AXIAL LEADED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads | Other Names | P9818CT |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Ammo Pack |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85045095 | ||
Electrical
| Impedance | 80 Ohm | Tolerance | :- |
| Filter Type | Differential Mode - Single | Test Frequency | 100 MHz |
| Current Rating - DC | :7A | DC Resistance (DCR) | 10 mOhm Max |
| Current Rating (Max) | 7 A | Impedance @ Frequency | 80 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.01ohm | Resistance - Initial (Ri) (Min) | 10 mOhm |
Mechanical
| Weight | 0 | Diameter | 3.8 mm |
| Packaging | Tape and Reel | Lead Style | Axial |
| Mounting Type | Through Hole | Package / Case | Axial |
| Length - Overall | 9.3 mm | Mounting Feature | :Through Hole |

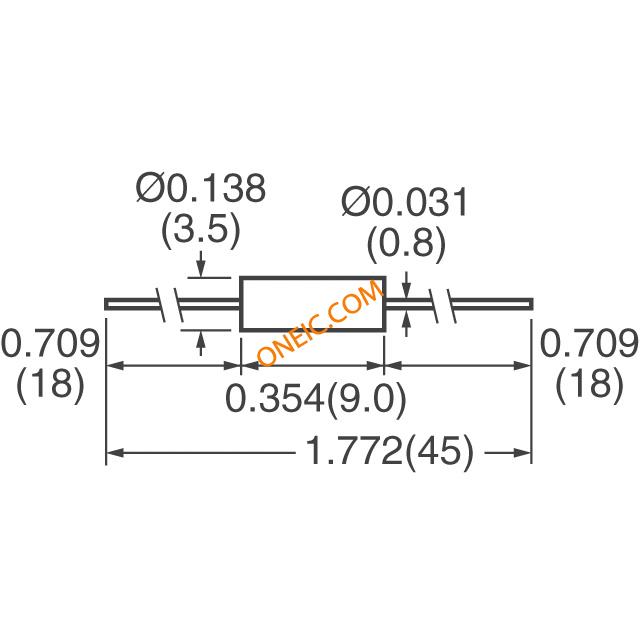

| Size / Dimension | 0.150" Dia x 0.366" L (3.80mm x 9.30mm) | Termination Style | Axial |
Product Info
| Type | Bead | Series | :EXCEL |
Environmental
| Temperature - Test | :Yes | Operating Temperature | -25 to 85 °C |
