EVQ-QFY02K
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Flush Round Button J-Bend 0.02A 15VDC 1.3N SMD Embossed Tape SWITCH TACTILE SPST-NO 0.02A 15V |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | P12246SCT | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | Off-Mom | Current Rating (Max) | 0.02@15VDC A |
| Switch Function/Rating | N.O. | Contact Rating @ Voltage | 0.02A @ 15VDC |
Mechanical

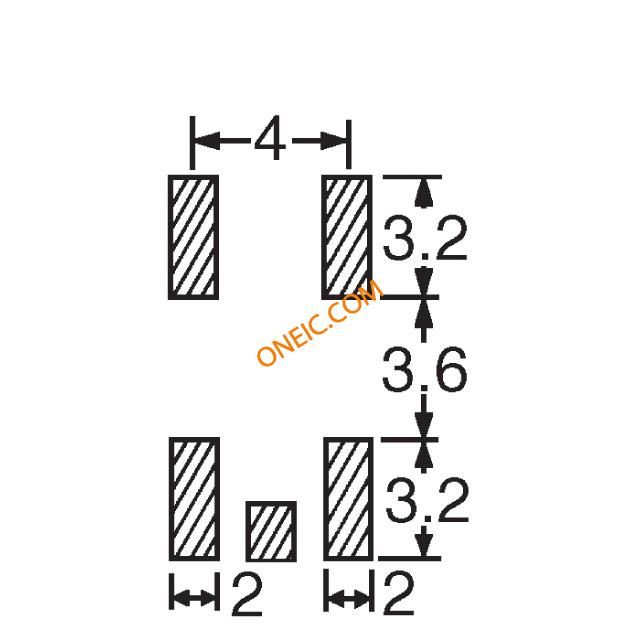

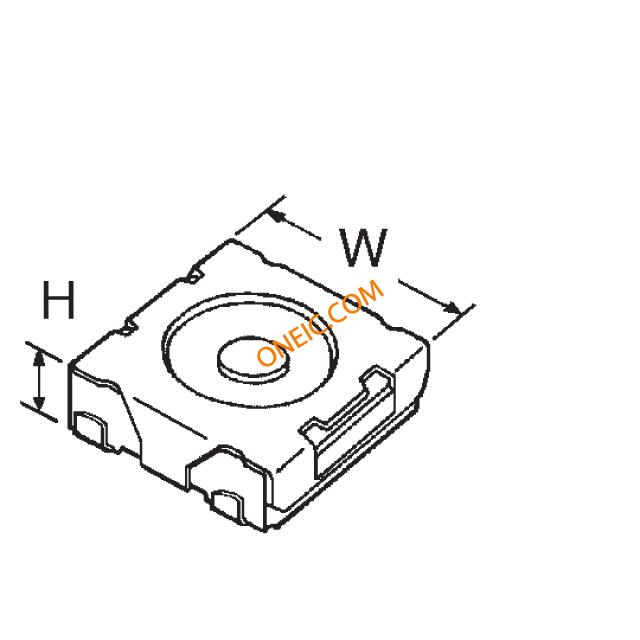

| Outline | 6.20mm x 6.20mm | Packaging | Tape & Reel (TR) |
| Actuator Type | Standard | Mounting Type | Surface Mount |
| Switch Travel | 0.25mm | Terminal Type | J-Bend |
| Operating Force | 1.3 N | Termination Style | SMD (SMT) Tab |
| Actuator Orientation | Top Actuated | Switch Actuation Level | SPST |
| Actuator Height off PCB, Vertical | 2.00mm | ||
Product Info
| Type | Light Touch | Features | Grounding Pin |
| Illumination | Non-Illuminated | ||
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -20 to 70 °C |
