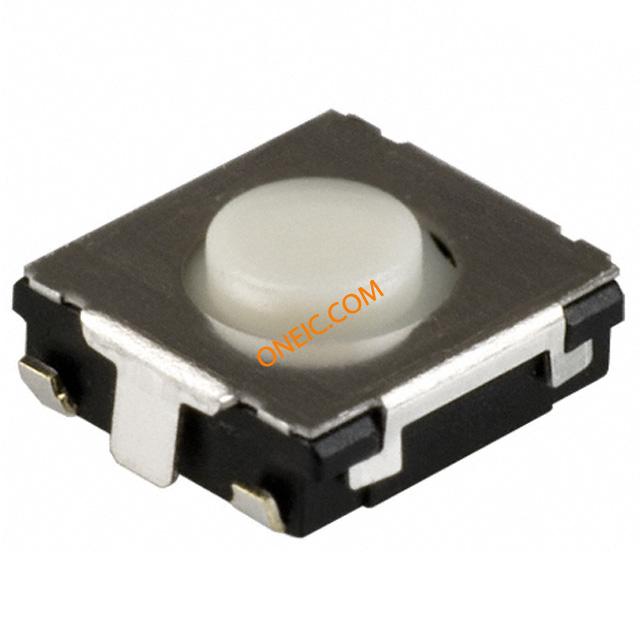

EVQ-Q2M02W

点击放大查看

对参数有疑问?问 AI 助手

Business

Lead Time98 DaysOther NamesP12945SCT
SubcategorySwitch TactileStandard PackageTape & Reel
Factory Pack Quantity12000

Compliance

RoHSLead free / RoHS Compliant

Electrical

CircuitSPST-NOVoltage Rating15 V
Switch FunctionOff-MomCurrent Rating (Max)0.02@15VDC A
Switch Function/RatingN.O.Contact Rating @ Voltage0.02A @ 15VDC

Mechanical

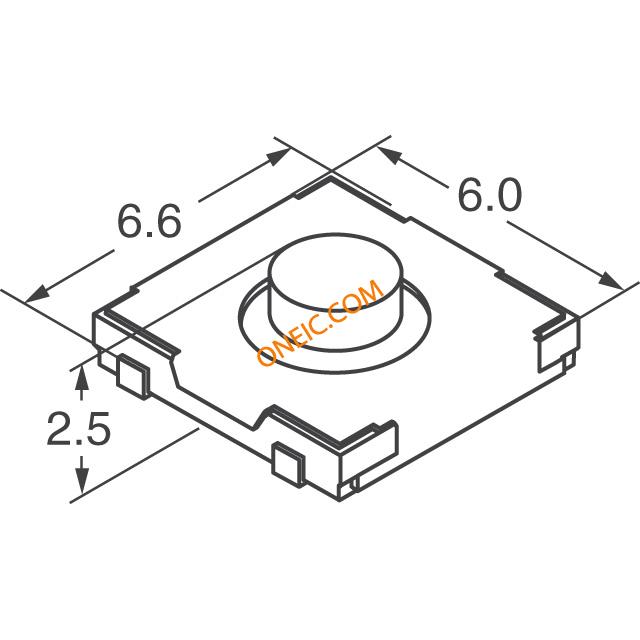

ColorWhiteOutline6.60mm x 6.00mm
PackagingEmbossed Tape and ReelContact FormSPST
Actuator TypeStandardMounting TypeSurface Mount
Switch Travel0.25mmTerminal TypeJ-Bend
Contact FinishSilverMounting StyleSMD/SMT
Operating Force1.3 NTermination StyleSMD (SMT) Tab
Actuator OrientationTop ActuatedHeight - Seated (Max)2.5 mm
Switch Actuation LevelSPSTActuator Height off PCB, Vertical2.50mm

Product Info

TypeLight TouchSeriesEVQQ2
FeaturesGrounding PinIlluminationNon-Illuminated
Industry AliasesEVQQ2M02W

Environmental

Mechanical Life1,000,000 CyclesOperating Temperature-40 to 85 °C

Documents & Media

Online Document
PDF Document
PDF Document

Sourcing & traceability

Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
