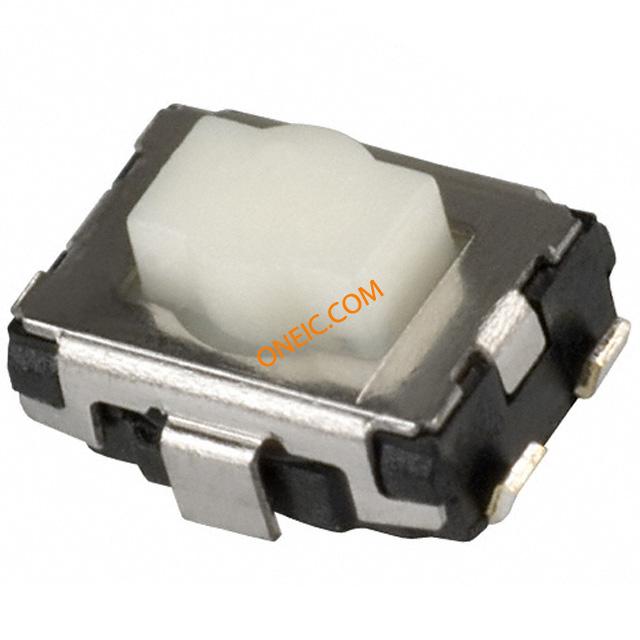

EVQ-P2T02M
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Button J-Bend 0.02A 15VDC 2.4N SMD Embossed T/R SWITCH TACTILE SPST-NO 0.02A 15V Tactile Switches FLAT ACT 2.4NF 4.7x3.5x2.1mm Switch, Light Touch; 4.7x3.5mm; SMD; Force=2.4N; H=2.1mm, J-bent terminal |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 42 Days | Other Names | P11082SCT |
| Subcategory | Switch Tactile | Product Category | Tactile Switches |
| Standard Package | Tape & Reel | Factory Pack Quantity | 4000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST-NO | Operation | 2.4 N Vertical force |
| Voltage Rating | 15 V | Switch Function | Off-Mom |
| Current Rating (Max) | 0.02@15VDC A | Switch Function/Rating | N.O. |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Voltage - DC Reverse (Vr) (Max) | 15V |
Mechanical
| Depth | 5.5 mm | Height | 2.1 mm |
| Outline | 4.70mm x 3.50mm | Packaging | Embossed Tape and Reel |
| Termination | SMT | Contact Form | SPST |
| Travel Range | 0.25 mm | Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount | Switch Travel | 0.25mm |
| Terminal Type | J-Bend | Actuator Color | Natural |
| Connector Type | Yes | Contact Finish | Silver |
| Mounting Style | SMD/SMT | Actuator Length | 0.45 |
| Operating Force | 2.4 N | Length - Overall | 3.5 mm |

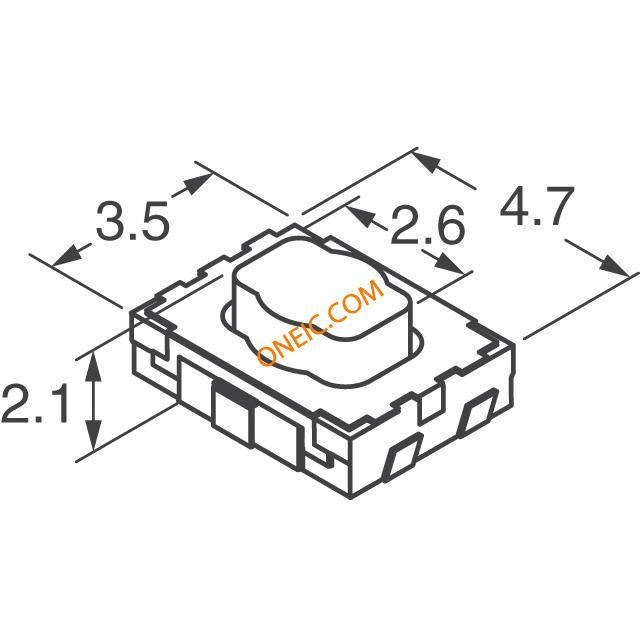

| Size / Dimension | 4.7 x 3.5 mm | Termination Style | J Lead |
| Height Above Board | 2.1 mm | Actuator Style/Size | Button |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 2.1 mm |
| Switch Actuation Level | SPST | Illumination Type, Color | Not Required |
| Actuator Height off PCB, Vertical | 2.10mm | ||
Product Info
| Type | Light Touch | Series | EVQ |
| Features | Grounding Pin | Illumination | Non-Illuminated |
| Electrical Life | 500000 | Industry Aliases | EVQP2T02M |
Environmental
| Mechanical Life | 500,000 Cycles | Operating Temperature | -40 to 85 °C |
