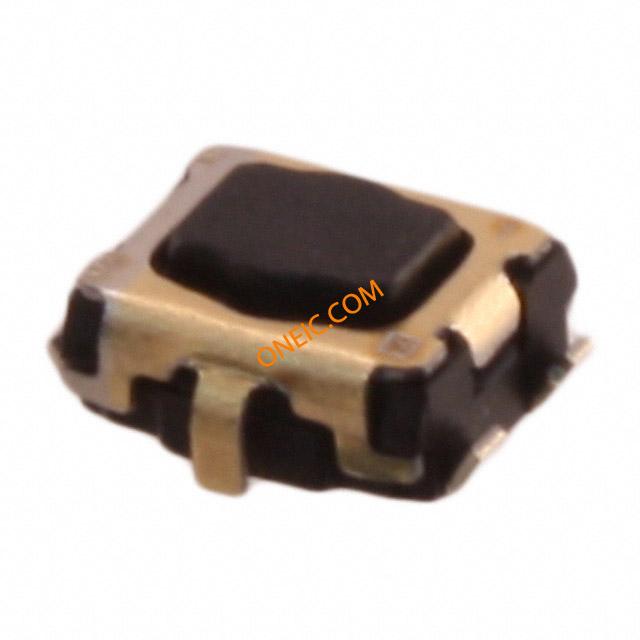

EVP-AA302K
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Rectangular Button J-Bend 0.02A 15VDC 1.6N SMD Embossed T/R SWITCH TACTILE SPST-NO 0.02A 15V Tactile Switches Swtch Lite Touch SMD 1.7mm ht J-bent 1.6N |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 42 Days | Other Names | P15196CT |
| Subcategory | Switch Tactile | Standard Package | Tape & Reel |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | Off-Mom | Current Rating (Max) | 0.02@15VDC A |
| Switch Function/Rating | N.O. | Contact Rating @ Voltage | 0.02A @ 15VDC |
Mechanical
| Outline | 3.50mm x 2.90mm | Packaging | Embossed Tape and Reel |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Surface Mount | Switch Travel | 0.15mm |
| Terminal Type | J-Bend | Connector Type | Yes |
| Mounting Style | SMD/SMT | Operating Force | 1.6 N |
| Termination Style | J Lead | Actuator Orientation | Top Actuated |
| Switch Actuation Level | SPST | Actuator Height off PCB, Vertical | 1.70mm |
Product Info
| Type | Light Touch | Series | EVPAA |
| Features | Grounding Pin | Illumination | Non-Illuminated |
| Industry Aliases | EVPAA302K | ||
Environmental
| Mechanical Life | 200,000 Cycles | Operating Temperature | -40 to 85 °C |
