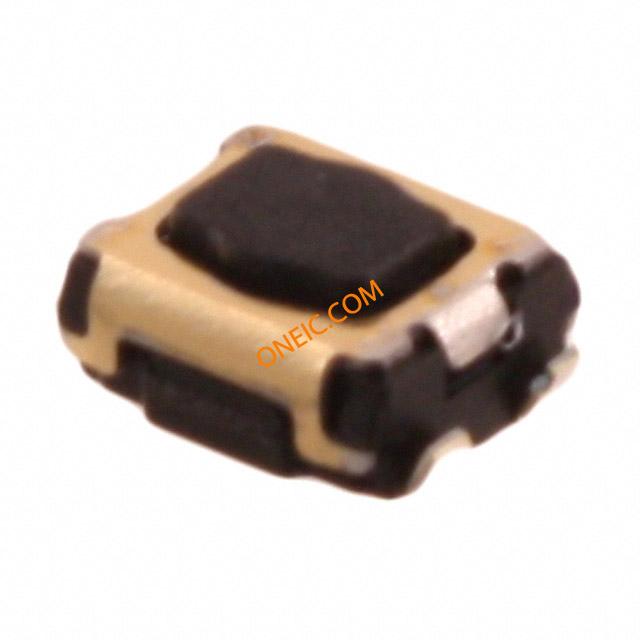

EVP-AA102K
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Rectangular Button J-Bend 0.02A 15VDC 1N SMD Embossed T/R SWITCH TACTILE SPST-NO 0.02A 15V Tactile Switches Swtch Lite Touch SMD 1.7mm ht J-bent 1.0N |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 42 Days | Other Names | P15197CT |
| Subcategory | Switch Tactile | Standard Package | Tape & Reel |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | Off-Mom | Current Rating (Max) | 0.02@15VDC A |
| Switch Function/Rating | N.O. | Contact Rating @ Voltage | 0.02A @ 15VDC |
Mechanical
| Depth | 2.9 | Height | 1.7 |
| Outline | 3.50mm x 2.90mm | Packaging | Embossed Tape and Reel |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Surface Mount | Switch Travel | 0.15mm |
| Terminal Type | J-Bend | Actuator Color | Black |
| Connector Type | Yes | Contact Finish | Silver |
| Mounting Style | SMD/SMT | Actuator Length | 0.3 |
| Operating Force | 1 N | Length - Overall | 4.3 |
| Termination Style | J Lead | Actuator Style/Size | Rectangular Button |
| Actuator Orientation | Top Actuated | Switch Actuation Level | SPST |
| Actuator Height off PCB, Vertical | 1.70mm | ||
Product Info
| Type | Light Touch | Series | EVPAA |
| Features | Grounding Pin | Illumination | Non-Illuminated |
| Electrical Life | 1000000 | Industry Aliases | EVPAA102K |
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -40 to 85 °C |
