ERZ-V05D271
| Manufacturer | |
| Description | Var 175VAC/225VDC 800A 270V Radial Bulk Varistors ZNR Transient/Surge Absorbers Type D VARISTOR 270V 600A DISC 5MM VARISTOR 247V 800A DISC 5MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MOV | Lead Time | 70 Days |
| Subcategory | Varistor | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Capacitance | 90 pF | Power - Output | 11J |
| Voltage Rating | 225 V | Current - Surge | 800 A |
| Maximum AC Volts | 175VAC | Maximum DC Volts | 225VDC |
| Voltage - Clamping | 475 V | Voltage - Input (Min) | 175 V |
| Varistor Voltage (Max) | 270 V | Current - Peak Pulse (8/20us) | 5 A |
| Voltage - DC Spark Over (Nom) | 225VDC | ||

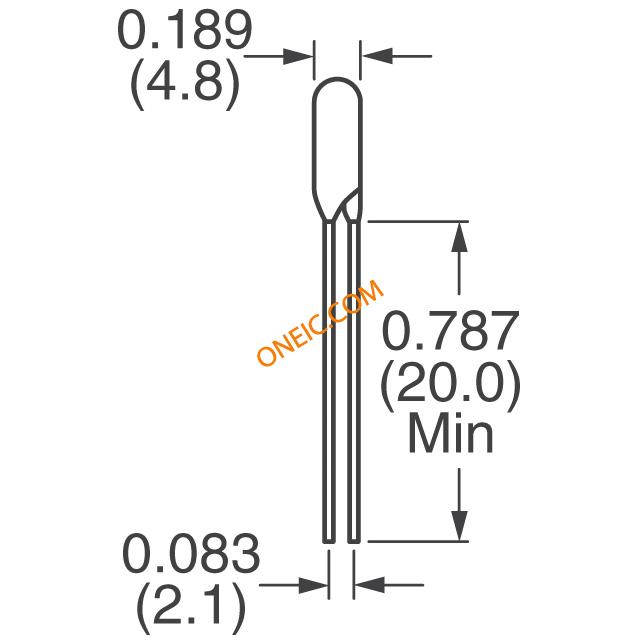

Mechanical
| Depth | 4.8 | Height | 10 |
| Diameter | 5 mm | Packaging | Bulk |
| Lead Style | Radial | Lead Spacing | 5 mm |
| Pitch - Post | 5 | Mounting Type | Radial |
| Package / Case | Disc 5mm | Size / Dimension | 5 mm Dia. x 10 mm L |
| Termination Style | Radial | ||
Product Info
| Energy | 8.0J | Series | V |
| Industry Aliases | ERZV05D271 | Number of Circuits | 1 |
Environmental
| Surge Rating (Watts) | 11 J | Operating Temperature | -40 to 85 °C |
