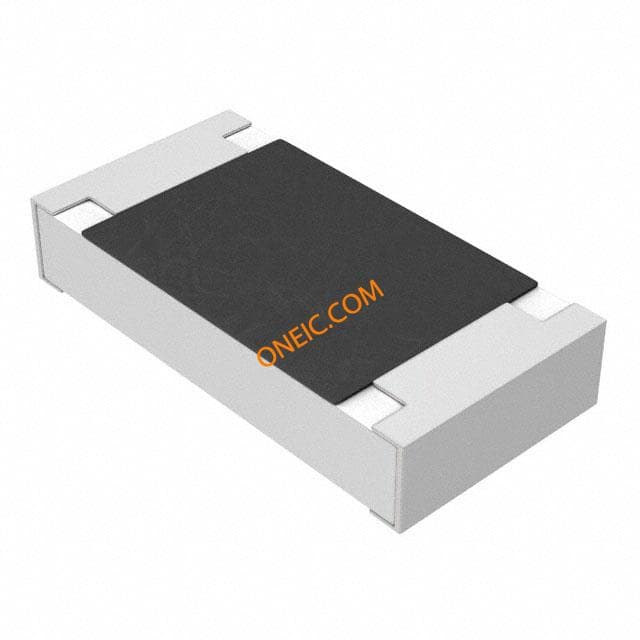

ERJ-8ENF1003V
| Manufacturer | |
| Description | Res Thick Film 1206 100K Ohm 1% 1/4W ±100ppm/°C Molded SMD Punched Carrier T/R Res Thick Film 1206 100K Ohm 1% 0.25W(1/4W) ±100ppm/°C Molded SMD Punched Carrier T/R RES 100K OHM 1/4W 1% 1206 SMD Thick Film Resistors 1206 100Kohms 1% Tolerance RES, THICK FILM, 100K, 250mW, 1%, 1206, FULL REEL RESISTOR, THICK FILM, 100KOHM, 250mW, 1% Resistor; Thick Film; Res 100 Kilohms; Pwr-Rtg 0.25 W; Tol 1%; SMT; 1206; Cut Tape Resistor; Thick Film; Res 100 Kilohms; Pwr-Rtg 0.25 W; Tol 1%; SMT; 1206; Tape & Reel |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Thick Film Resistors SMD | Lead Time | 98 Days |
| Other Names | P100KFDKR | Subcategory | Resistor Fixed Single-Surface Mount |
| Standard Package | Tape & Reel | Factory Pack Quantity | 5000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85332100 | ||
Electrical
| Tolerance | 1 % | Fail Short | No |
| Resistance | 100 KOhm | Range deg/s | :PANASONIC - ERJ Series |
| Power (Watts) | 0.25W, 1/4W | Power - Rated | 1/4 W |
| Voltage Rating | 200 V | Current - Sensing | No |
| Resistance (Ohms) | 100k | Power - Peak Pulse | 0.25 W |
| Resistance Tolerance | :± 1% | Resistor - Base (R1) | :Thick Film |
Mechanical
| Depth | 1.6 | Width | 1.6 mm |
| Height | 0.028" (0.70mm) | Weight | 0 |
| Base Type | :1206 ^3216 Metric] | Packaging | Punched Carrier Tape and Reel |
| Termination | SMT | Mounting Type | Surface Mount |
| Contact Finish | Tin | Package / Case | 1206 |
| Package Cooled | 1206 (3216 mm) | Material - Core | Thick Film |
| Material Finish | :- | Length - Overall | 3.2 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Mounting Hole Diameter | 3216 |
| Number of Terminations | 2 | Supplier Device Package | 1206 |
Product Info
| Type | Thick Film | Series | ERJ |
| Features | Precision | Technology | Thick Film |
| Composition | Thick Film | Industry Aliases | ERJ8ENF1003V |
Environmental
| Temperature Range | –55 to +155 °C | Surge Rating (Watts) | No |
| Operating Temperature | -55 to 155 °C | Temperature Coefficient | ±100 ppm/°C |
