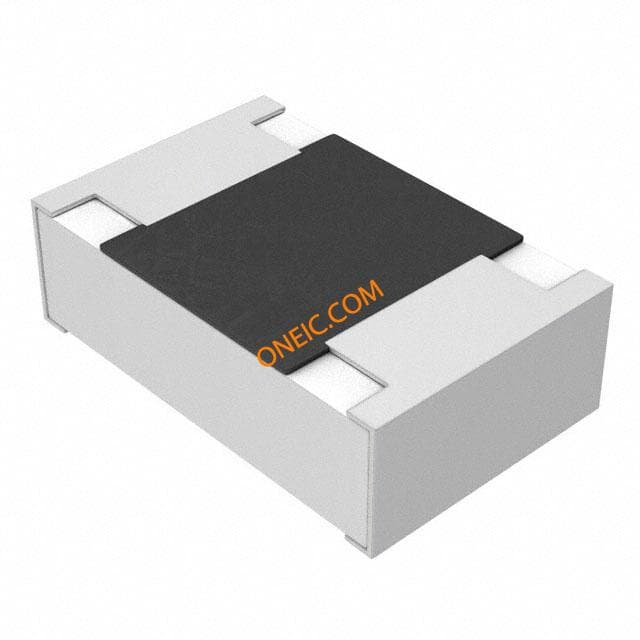

ERJ-6ENF2003V
| Manufacturer | |
| Description | Res Thick Film 0805 200K Ohm 1% 1/8W ±100ppm/°C Molded SMD SMD Punched Carrier T/R Thick Film Resistors - SMD 0805 200Kohms 1% Tol Res Thick Film 0805 200K Ohm 1% 0.125W(1/8W) ±100ppm/°C Molded SMD Punched Carrier T/R RES 200K OHM 1/8W 1% 0805 SMD Thick Film Resistors 0805 200Kohms 1% Tol Res Thick Film 0805 200K Ohm 1% 1/8W ±100ppm/°C Molded SMD Punched Carrier T/R THICK FILM, RESISTOR, 200KOHM, 125mW, ±1%, FULL REEL Resistor; Thick Film; Res 200 Kilohms; Pwr-Rtg 0.125 W; Tol 1%; SMT; 0805; Cut Tape Resistor; Thick Film; Res 200 Kilohms; Pwr-Rtg 0.125 W; Tol 1%; SMT; 0805; Tape & Reel |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Thick Film Resistors SMD | Lead Time | 42 Days |
| Other Names | P200KCDKR | Subcategory | Resistor Fixed Single-Surface Mount |
| Standard Package | Tape & Reel | Factory Pack Quantity | 5000 |
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Tariff No | 85332100 | ||
Electrical
| Tolerance | 1 % | Fail Short | No |
| Resistance | 200 KOhm | Range deg/s | :PANASONIC - ERJ Series Thick Film Chip Resistors |
| Power (Watts) | 0.125W, 1/8W | Power - Rated | 1/8 W |
| Voltage Rating | 150 V | Current - Sensing | No |
| Resistance (Ohms) | 200k | Power - Peak Pulse | 0.125 W |
| Resistance Tolerance | :± 1% | ||
Mechanical
| Depth | 1.25 | Width | 1.2 mm |
| Height | 0.028" (0.70mm) | Weight | 0 |
| Base Type | :0805 ^2012 Metric] | Packaging | Reel |
| Termination | SMT | Mounting Type | Surface Mount |
| Contact Finish | Tin | Package / Case | 0805 |
| Package Cooled | 0805 (2012 mm) | Material - Core | Thick Film |
| Material Finish | :- | Length - Overall | 2 |
| Size / Dimension | 1.2 mm W x 2 mm L x 0.6 mm H | Termination Style | SMD/SMT |
| Mounting Hole Diameter | 0805 | Number of Terminations | 2 |
| Supplier Device Package | 0805 | ||
Product Info
| Type | Thick Film | Series | ERJ |
| Features | Precision | Technology | Thick Film |
| Composition | Thick Film | Industry Aliases | ERJ6ENF2003V |
Environmental
| Temperature Range | –55 to +155 °C | Surge Rating (Watts) | No |
| Operating Temperature | -55 to 155 °C | Temperature Coefficient | ±100 ppm/°C |
