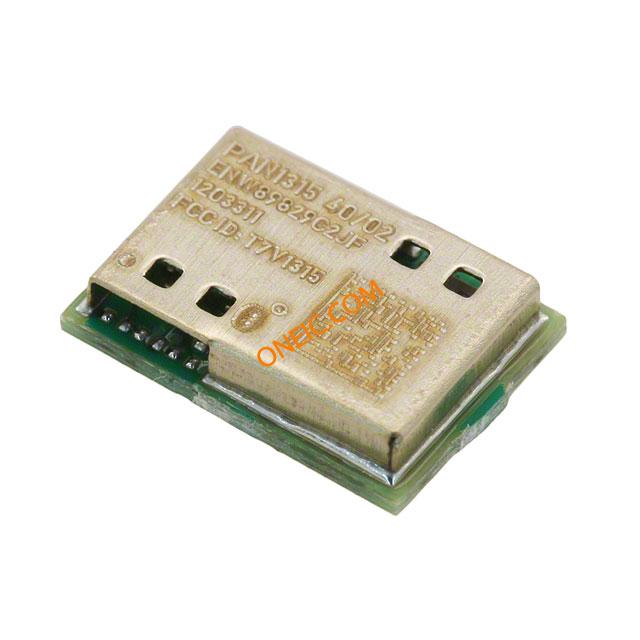

ENW-89829C2JF
| Manufacturer | |
| Description | Bluetooth Class II 3.3V 0.217Mbps 24-Pin SMD T/R Bluetooth / 802.15.1 Modules PAN1315A CC2560A HCI Mod wo/ant BT BLUETOOTH HCI MODULE NO ANTENNA Bluetooth |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | P14960CT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 500 | Standard Package Name | SMD |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Data Rate | 2.178 Mbps | Frequency | 2.4GHz |
| Interface | UART | Modulation | GFSK |
| Power Level | Class II | Sensitivity | - 93 dBm |
| Output Power | 10.5 dBm | Data Interface | Solder Pad |
| Power - Output | 10.5dBm | Voltage Rating | 1.7 |
| Data Rate (Max) | 0.217 Mbps | Frequency - Max | 2480 |
| Voltage - Supply | 3.3 V | Current - Receiving | 33mA |
| Frequency - Operating | 2402 | Current - Transmitting | 33mA |
| Voltage - Supply (Min) | 4.8 | Frequency Bands (Low / High) | 2.4 GHz |
Mechanical
| Packaging | Reel | Lead Style | No Lead |
| Mounting Style | SMD/SMT | Package / Case | 24SMD |
| Package Quantity | SMD | Size / Dimension | 9.5 mm x 9 mm x 1.8 mm |
| Antenna Connector | PCB, Surface Mount | Number of Positions | 24 |
Product Info
| Type | Module | Class | 1, 2 |
| Series | PAN1315A | Applications | General Purpose |
| Modulation or Protocol | Bluetooth v2.1+EDR | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | + 70 C |
