EEUFC1H102
| Manufacturer | |
| Description | Cap Aluminum 1000uF 50V 20% (16 X 25mm) Radial 7.5mm 2235mA 5000 hr 105°C Bulk FC/lowESR/50V/1000uF/16x25mm/105°C/5000h Panasonic 1000μF ±20% 0.034Ω 50V dc Through Hole Aluminium Electrolytic Capacitor Cap Aluminum 1000uF 50V 20% (16 X 25mm) Radial 7.5mm 2235mA 5000h 105C Bulk CAPACITOR, 1000UF, 50V Capacitor;AluminumElectrolytic;RadialAlElectrolyticCap;1000uF50V Capacitor: electrolytic; low impedance; THT; 1000uF; 50V; Ø16x25mm Aluminium Electrolytic Capacitor 1000 uF, EEUFC1H102, Panasonic Automotive & Industrial Systems FC Radial Elec Cap,22uF 100V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10000 | Unit Pack | 100 |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85322200 |
| Rad Hardened | No | ||
Electrical
| Voltage | 50 Vdc | Impedance | :0.034ohm |
| Tolerance | 20 % | Capacitance | 1000 uF |
| Range deg/s | :PANASONIC - FC Series | Voltage Rating | :50V |
| DC Cold Resistance | 500 uA | Capacitance - Input | :Radial Leaded |
| Capacitance @ Vr, F | electrolytic | Impedance @ Frequency | :100kHz |
| Voltage - Supply (Min) | 50V | Ripple Current @ Low Frequency | :2235mA |
| Ripple Current @ High Frequency | 2235 mA | ||
Mechanical
| Size | 16 X 25 | Depth | Not Required mm |
| Height | 25 mm | Length | :25mm |
| Weight | 0.008 | Diameter | 16 mm |
| Packaging | Bulk | Size - Body | Ø16 x 25mm |
| Termination | Radial | Construction | Radial |
| Lead Spacing | 7.5 mm | Pin Diameter | :0.6mm |
| Pitch - Post | 7.5 mm | Mounting Type | Through Hole |
| Terminal Type | :Wire Ended | Mounting Style | Through Hole |
| Number of Pins | :2 | Length - Overall | Not Required mm |
| Material - Blade | AluminumElectrolytic | Package Quantity | 100 |
| Pitch - Connector | 7.5mm | Shell Size - Insert | 16mmDia.x25mmL |
| Diameter - Small Outside | 0.8 mm | ||
Product Info
| Spg | 100 | Type | Radial |
| Series | :FC | Failure Rate | Not Required |
| Electrical Life | 5000 h | Number of Units | 1 |
Environmental
| Rated Life | :3000 hours @ 105°C | Operating Temperature | -55 to 105 °C |
| Thermal Resistance @ Natural | :20°C | Operating Temperature - Junction | :3000h |
Documents & Media
PDF Document
PDF Document
Similar Parts

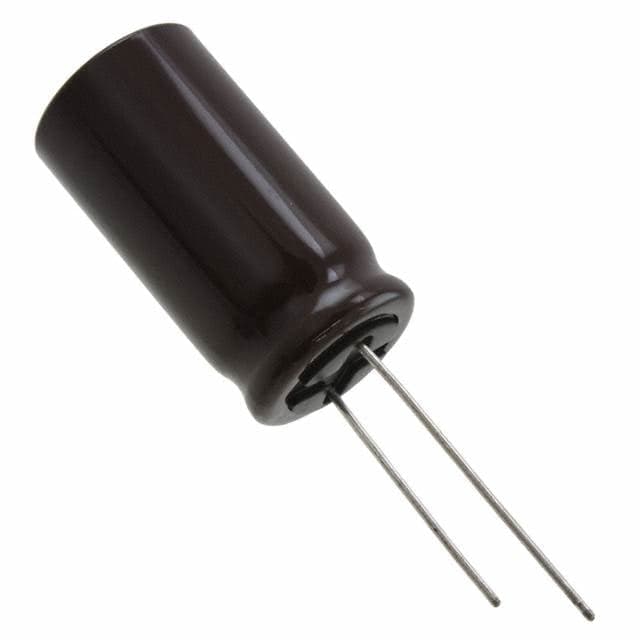

UPM1H102MHD
