EEUFC1C471
| Manufacturer | |
| Description | Cap Aluminum 470uF 16V 20% (10 X 12.5mm) Radial 5mm 755mA 3000 hr 105°C Bulk FC/lowESR/16V/470uF/10x12,5mm/105°C/3000 Panasonic 470μF ±20% 0.09Ω 16V dc Through Hole Aluminium Electrolytic Capacitor Cap 470uF 16VDC 20% 10 X 12.5mm RDL 5mm 755mA 3000 hr Bulk CAPACITOR, 470UF, 16V Capacitor;AluminumElectrolytic;AlElectrolyticCap;470uF16V105DegC Capacitor: electrolytic; low impedance; THT; 470uF; 16V; Pitch:5mm Aluminium Electrolytic Capacitor 470 uF, EEUFC1C471, Panasonic Automotive & Industrial Systems Panasonic FC 径向 系列 470μF 16 V 直流 铝电解电容器 , ±20%容差, 90mΩ |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 20000 | Unit Pack | 200 |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85322200 |
| Rad Hardened | No | ||
Electrical
| Voltage | 16 Vdc | Impedance | :0.09ohm |
| Tolerance | 20 % | Capacitance | 470 uF |
| Range deg/s | :PANASONIC - FC Series | Voltage Rating | :16V |
| DC Cold Resistance | 75.2 uA | Capacitance - Input | :Radial Leaded |
| Capacitance @ Vr, F | electrolytic | Impedance @ Frequency | :100kHz |
| Voltage - Supply (Min) | 16V | Ripple Current @ Low Frequency | :755mA |
| Ripple Current @ High Frequency | 755 mA | ||
Mechanical
| Size | 10 X 12.5 | Depth | Not Required mm |
| Height | 12.5 mm | Length | :12.5mm |
| Weight | 0.0153 | Diameter | 10 mm |
| Packaging | Bulk | Size - Body | Ø10 x 12.5mm |
| Termination | Radial | Construction | Radial |
| Lead Spacing | 5 mm | Pin Diameter | :0.6mm |
| Pitch - Post | 5 mm | Mounting Type | Through Hole |
| Terminal Type | :Wire Ended | Mounting Style | Through Hole |
| Number of Pins | :2 | Length - Overall | Not Required mm |
| Material - Blade | AluminumElectrolytic | Package Quantity | 200 |
| Pitch - Connector | 5mm | Shell Size - Insert | 10mmDia.x12.5mmL |
| Diameter - Small Outside | 0.6 mm | ||
Product Info
| Spg | 200 | Type | Radial |
| Series | :FC | Failure Rate | Not Required |
| Electrical Life | 3000 h | Number of Units | 1 |
Environmental
| Rated Life | :3000 hours @ 105°C | Operating Temperature | -55 to 105 °C |
| Thermal Resistance @ Natural | :20°C | Operating Temperature - Junction | :3000h |
Documents & Media
PDF Document
PDF Document
Similar Parts

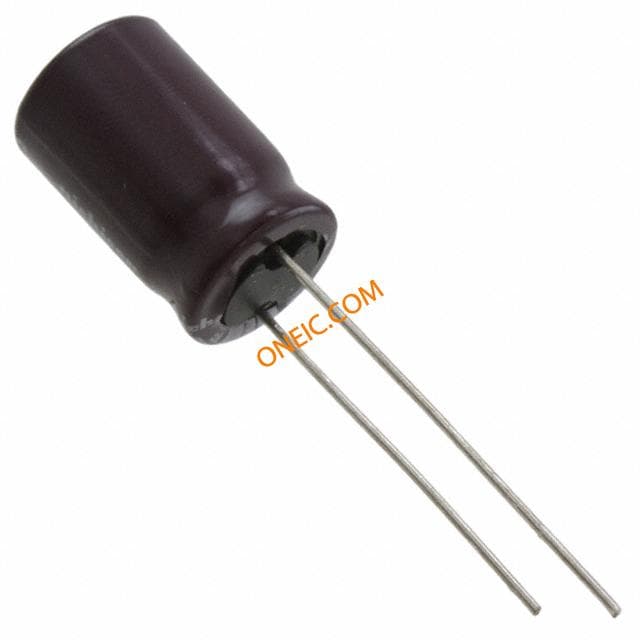

UPM1C471MPD6
