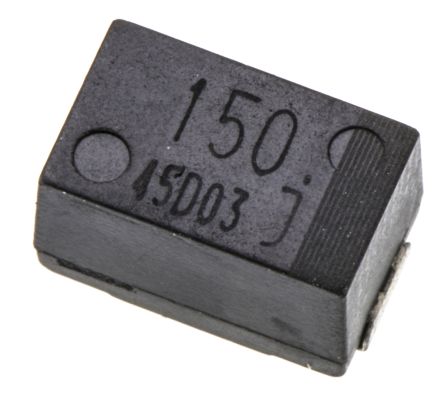

EEFUE0J151R
| Manufacturer | |
| Description | Cap Aluminum 150uF 6.3V 20% (7.3 X 4.3 X 4.2mm) SMD 0.012 Ohm 3300mA 1000 hr 105°C Embossed T/R pleasecheckreplacementproposal Panasonic 150μF ±20% 0.012Ω 6.3V dc SMD Aluminium Electrolytic Capacitor Cap 150uF 6.3VDC 20% 7.3 X 4.3 X 4.2mm SMD 0.012 Ohm 3300mA 1000 hr Embossed T/R CAP, ALU ELEC, 150UF, 6.3V, SMD Capacitor;AluminumPolymer;AlElectrolyticCapacitor;150uF6.3V Panasonic UE 系列 150μF 6.3 V 直流 聚合体 铝聚合物电容器 , ±20%容差, 12mΩ |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10000 | Unit Pack | 2000 |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85322200 |
Electrical
| ESR | :100kHz | Voltage | 6.3 Vdc |
| Tolerance | 20 % | Capacitance | 150 uF |
| Range deg/s | :PANASONIC - UE Series | Voltage Rating | :6.3V |
| Capacitance - Input | :2917 [7343 Metric] | Ripple Current @ Low Frequency | :3A |
| Ripple Current @ High Frequency | 3300 mA | ESR (Equivalent Series Resistance) | 0.012 Ohm |
Mechanical
| Depth | 4.3 mm | Width | :4.3mm |
| Height | 4.2 mm | Length | :7.3mm |
| Weight | 0.002 | Packaging | :Cut Tape |
| Termination | SMT | Construction | Flat |
| Mounting Type | Surface Mount | Reel Capacity | :2000 |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 7.3 mm |
| Material - Blade | AluminumElectrolytic | Size / Dimension | 0.287x0.169"(7.3x4.3mm)LxW |
| Tape Width - Max | :12mm | Shell Size - Insert | 2916(7343mm) |
Product Info
| Series | :UE | Electrical Life | 1000 h |
Environmental
| Rated Life | :1000 hours @ 105°C | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | :1000h | ||
