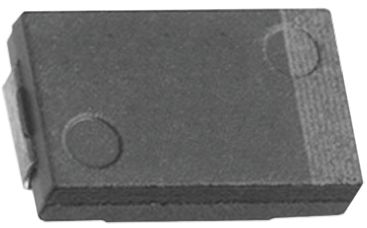

EEFSX0J151ER
| Manufacturer | |
| Description | Cap Aluminum 150uF 6.3V 20% (7.3 X 4.3 X 1.9mm) SMD 0.009 Ohm 3000mA 1000 hr 105°C Embossed T/R Sx 150uF 6,3V 20% 7x4x3 Panasonic 150μF ±20% 0.009Ω 6.3V dc SMD Aluminium Electrolytic Capacitor Cap Aluminum 150uF 6.3V 20% (7.3 X 4.3 X 1.9mm) SMD 0.009 Ohm 3000mA 1000h 105C Embossed T/R CAP, ALU ELEC, 150UF, 6.3V, SMD Polymer capacitor 150 uF 4 VDC, EEFSX0J151ER, Panasonic Automotive & Industrial Systems Panasonic SP-Cap SX 系列 150μF 6.3 V 直流 聚合体 铝聚合物电容器 , ±20%容差, 9mΩ |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 3500 |
Compliance
| Tariff No | 85322200 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| ESR | :100kHz | Speed | 260 |
| Voltage | 6.3 Vdc | Tolerance | 20 % |
| Capacitance | 150 uF | Range deg/s | :PANASONIC - S Series |
| Voltage Rating | :6.3V | Voltage - Nominal | 6.3V |
| Capacitance - Input | :2917 [7343 Metric] | Capacitance @ Frequency | 150µF |
| Capacitance Ratio Condition | -20% | Ripple Current @ Low Frequency | :3A |
| Ripple Current @ High Frequency | 3000 mA | ESR (Equivalent Series Resistance) | 0.009 Ohm |
Mechanical
| Size | 7.3 X 4.3 X 1.9 | Depth | 4.3 mm |
| Width | :7.3mm | Height | 1.9 mm |
| Length | :1.9mm | Weight | 0.01 |
| Diameter | Not Required mm | Packaging | REEL |
| Construction | Flat | Height (Max) | Not Required mm |
| Lead Spacing | Not Required mm | Mounting Type | Surface Mount |
| Mounting Style | Surface Mount | Connector Style | POLYMER |
| Length - Overall | 7.3 mm | Size / Dimension | 7,3x4,3x2,mm |
| Contact Tail Length | NA | Diameter - Small Outside | Not Required mm |
Product Info
| Type | Polymer | Style | CHIP |
| Matchcode | HCRP150U6,3V | Failure Rate | Not Required |
| Main Purpose | NA | Rutronik Size | 7x4x2mm |
| Electrical Life | 1000 h | Standard Leadtime | 16 weeks |
Environmental
| Rated Life | :1000 hours @ 105°C | Operate Time | 1000h |
| Operating Temperature | -40 to 105 °C | Thermal Resistance @ Natural | -40°C |
