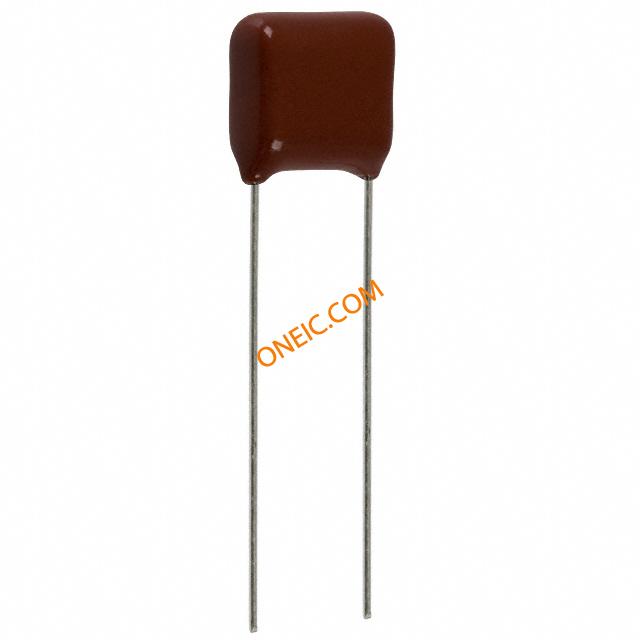

ECQ-E4104KF
| Manufacturer | |
| Description | Cap Film 0.1uF 400V PET 10% (12 X 6.3 X 12mm) Radial 10mm 105°C Bulk Film Capacitors 400DC 0.1uF 10% LS=10mm CAP FILM 0.1UF 400VDC RADIAL Cap Film 0.1uF 400V PET 10% (12 X 6.3 X 12mm) Radial 10mm 105C Bulk CAPACITOR POLY FILM, 0.1UF, 400VDC, ±10%, RAD Capacitor; Polyester Met; Cap 0.1 uF; Tol 10%; Vol-Rtg 400 VDC; Radial; Straight; Bulk |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Metallized Plastic Film Capacitors | Lead Time | 105 Days |
| Subcategory | Capacitor Plastic Film | Product Category | Film Capacitors |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85322500 | Rad Hardened | No |
Electrical
| Voltage | 400 Vdc | Tolerance | 10 % |
| Capacitance | 0.1 uF | Range deg/s | :PANASONIC - ECQE(F) Series |
| Voltage Rating | 400 V | Dissipation Factor (DF) | 1 |
Mechanical
| Size | 12 X 6.3 X 12 | Depth | 6.3(Max) mm |
| Width | 6.3 mm | Height | 12 mm |
| Weight | 0 | Diameter | Not Required mm |
| Packaging | Bulk | Lead Style | Straight |
| Termination | PC Pins | Construction | Radial |
| Height (Max) | 13 mm | Lead Spacing | 10 mm |
| Pin Diameter | 0.6 mm | Pitch - Post | 10 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 12(Max) X 6.3(Max) X 12(Max) | Material - Core | Polyester Metallized |
| Length - Overall | 12(Max) mm | Size / Dimension | 0.472" L x 0.248" W (12.00mm x 6.30mm) |
| Termination Style | Radial | Diameter - Outside | 0.6 mm |
| Dielectric Material | PET | Height - Seated (Max) | 0.512" (13.00mm) |
| Diameter - Small Outside | 0.6 mm | ||
Product Info
| Type | Radial | Series | ECQE(B) |
| Applications | General Purpose | Failure Rate | Not Required |
| Manufacturer | ECQE Series | Product Type | General Purpose |
| Industry Aliases | ECQE4104KF | ||
Environmental
| Rated Life | :- | Temperature Range | –40 to 105 °C |
| Operating Temperature | -40 to 105 °C | Temperature Coefficient | PLYE |
