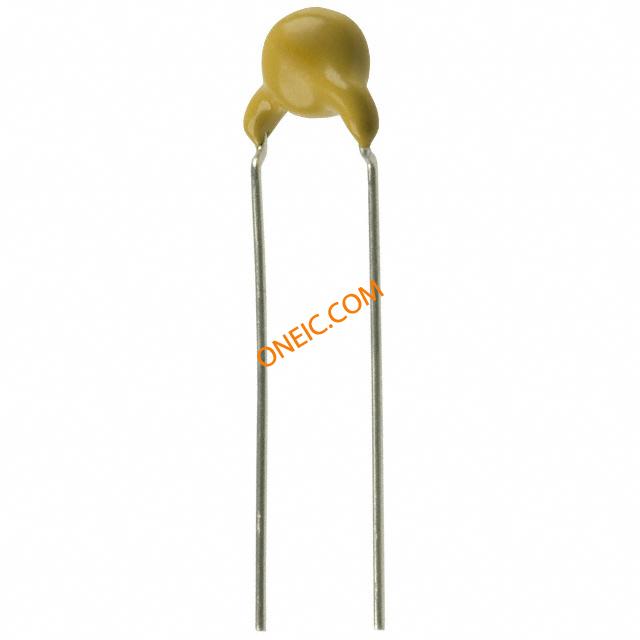

ECK-A3F151KBP
| Manufacturer | |
| Description | Cap Ceramic 150pF 3000V Y5P 10% (7.5 X 6mm) Radial 7.5mm 125°C Bulk CAP CER 150PF 3KV 10% RADIAL |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 3000VDC | Tolerance | 10% |
| Capacitance | 150pF | Voltage Rating | 3000V (3kV) |

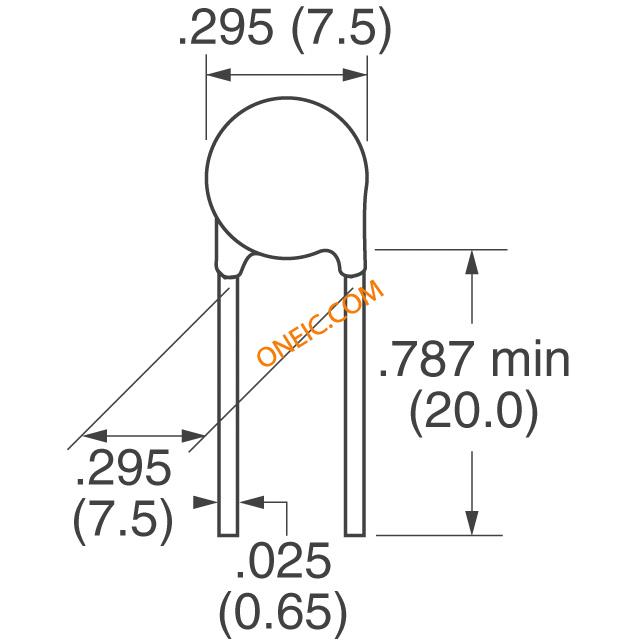

Mechanical
| Depth | 6(Max) | Diameter | 7.5(Max) |
| Packaging | Bulk | Lead Style | Formed Leads |
| Height (Max) | 11.5(Max) | Lead Spacing | 0.295" (7.50mm) |
| Pin Diameter | 0.65 | Pitch - Post | 7.5 |
| Mounting Type | Through Hole | Package / Case | Radial, Disc |
| Size / Dimension | 0.295" Dia (7.50mm) | Termination Style | Radial |
| Dielectric Material | Y5P | Height - Seated (Max) | 0.453" (11.50mm) |
Product Info
| Type | Ceramic Disc | Features | High Voltage |
| Applications | General Purpose | ||
Environmental
| Operating Temperature | -25°C ~ 125°C | Temperature Coefficient | Y5P (B) |
Documents & Media
PDF Document
