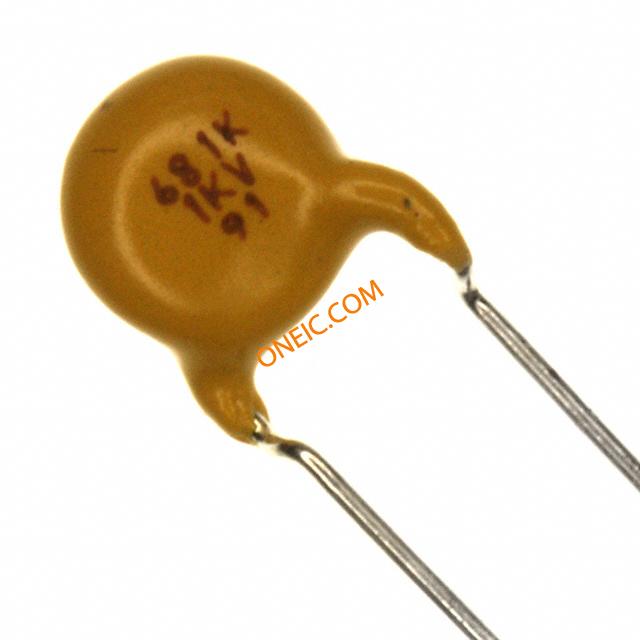

ECK-A3A681KBP
| Manufacturer | |
| Description | Cap Ceramic 680pF 1000V Y5P 10% (7 X 4.5mm) Radial 5mm 125°C Bulk CAP CER 680PF 1KV 10% RADIAL |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 1000VDC | Tolerance | 10% |
| Capacitance | 680pF | Voltage Rating | 1000V (1kV) |
Mechanical

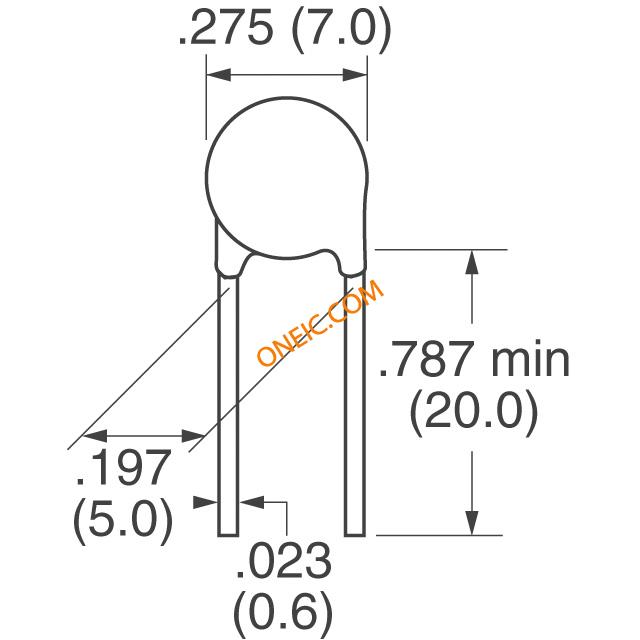

| Depth | 4.5(Max) | Diameter | 7(Max) |
| Packaging | Bulk | Lead Style | Formed Leads |
| Height (Max) | 11(Max) | Lead Spacing | 0.197" (5.00mm) |
| Pin Diameter | 0.6 | Pitch - Post | 5 |
| Mounting Type | Through Hole | Package / Case | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | Termination Style | Radial |
| Dielectric Material | Y5P | Height - Seated (Max) | 0.433" (11.00mm) |
Product Info
| Type | Ceramic Disc | Features | High Voltage |
| Applications | General Purpose | ||
Environmental
| Operating Temperature | -25°C ~ 125°C | Temperature Coefficient | Y5P (B) |
Documents & Media
PDF Document
