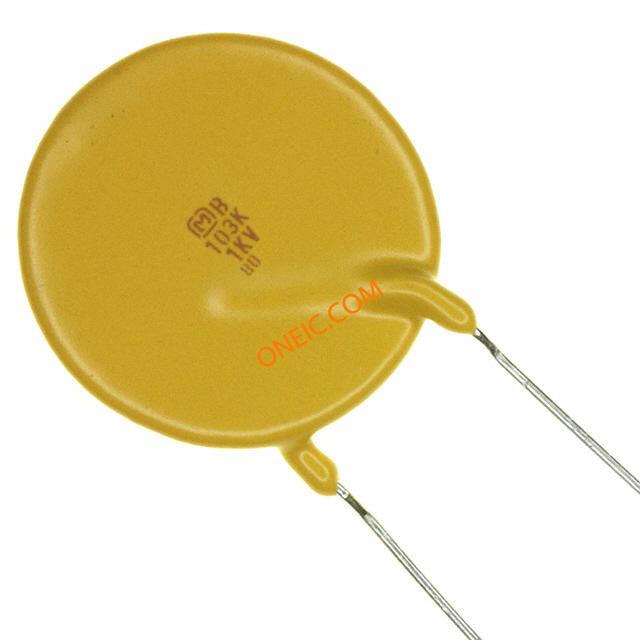

ECK-A3A103KBP
| Manufacturer | |
| Description | Cap Ceramic 0.01uF 1000V Y5P 10% Radial 10mm 105°C Bulk CAP CER 10000PF 1KV 10% RADIAL |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 1000VDC | Tolerance | 10% |
| Capacitance | 0.01uF | Voltage Rating | 1000V (1kV) |
Mechanical
| Packaging | Bulk | Lead Style | Straight |

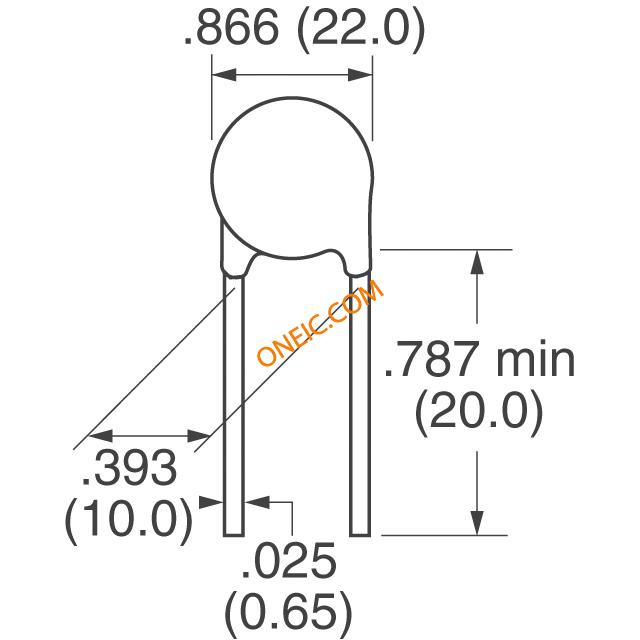

| Lead Spacing | 0.394" (10.00mm) | Pin Diameter | 0.65 |
| Pitch - Post | 10 | Mounting Type | Through Hole |
| Package / Case | Radial, Disc | Size / Dimension | 0.866" Dia (22.00mm) |
| Termination Style | Radial | Dielectric Material | Y5P |
| Height - Seated (Max) | 1.024" (26.00mm) | ||
Product Info
| Type | Ceramic Disc | Features | High Voltage |
| Applications | General Purpose | ||
Environmental
| Operating Temperature | -25°C ~ 125°C | Temperature Coefficient | Y5P (B) |
Documents & Media
PDF Document
