LE UW S2W-NZPZ-FRKV
| Manufacturer | |
| Description | High Power LEDs - White Ultra White, 8000K 170cd, 700mA LED OSTAR WHITE 4CHIP SMD |
| Category |
Business
| Other Names | 475-2808-6 | Part # Aliases | Q65110A8186 |
| Product Category | High Power LEDs - White | Standard Package | 1 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Luminous Flux | 390 lm to 710 lm | Viewing Angle | 120 deg |
| Current - Output | 4 x 700mA | Voltage - Supply | 3.45V |
| LED Forward Current | 700 mA | LED Forward Voltage | 3.6 V |
| Current Rating (Max) | 4 x 1A | Lumens/Watt @ Current - Test | 55 lm/W |
| Flux @ 25degC, Current - Test | 550 lm (450 lm ~ 820 lm) | Flux @ 85degC, Current - Test | 50 lm |
Mechanical
| Width | 4.83 mm | Height | 1.23 mm |
| Length | 5.9 mm | Packaging | Cut Tape (CT) |
| Lamp Color | 5700 K | Lens Color | Clear |
| Mounting Style | SMD/SMT | Package / Case | 8-SMD, No Lead Exposed Pad |
| Illumination Color | Cool White | ||
Product Info
| CCT (K) | 6737K | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
| Luminous Flux @ Current/Temperature | 704 lm | ||
Documents & Media
Similar Parts
C10265_LEDILSTAR-L-S
ledil
Ledilstar-L For Lighting Ostar LE W EXX LENS FOR OSRAM OSTAR LIGHTING LENS LEDILSTAR OSTAR LIGHT 12DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS LENS, ROUND, PMMA, OSRAM OSTAR LIGHTING LED
C10271_LEDILSTAR-P-S
ledil
Ledilstar-P For Projection Ostar LENS LEDILSTAR OSTAR PROJ 12DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS LENS, ROUND, PMMA, OSRAM OSTAR PROJECTION LED
C10270_LEDILSTAR-P-W
ledil
Ledilstar-P For Projection Ostar LENS LEDILSTAR OSTAR PROJ 32DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS
803808
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR OSRAM OSTAR SMT BRD STAR LED IMS OSRAM OSTAR SMD ThermalClad Star IMS Osram Ostar SMT
C10266_LEDILSTAR-L-W
ledil
Ledilstar-L For Lighting Ostar LE W EXX LENS LEDILSTAR OSTAR LIGHT 32DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS LENS, ROUND, PMMA, OSRAM OSTAR LIGHTING LED
CP10317_LEDILSTAR-P-SUB
LEDIL OY
LENS ROUND 1 POS 35MM OD 26.2M LENS LEDILSTAR OSTAR PROJ 14DEG LED Lighting Lenses Round Lens 14 Degrees FWHM

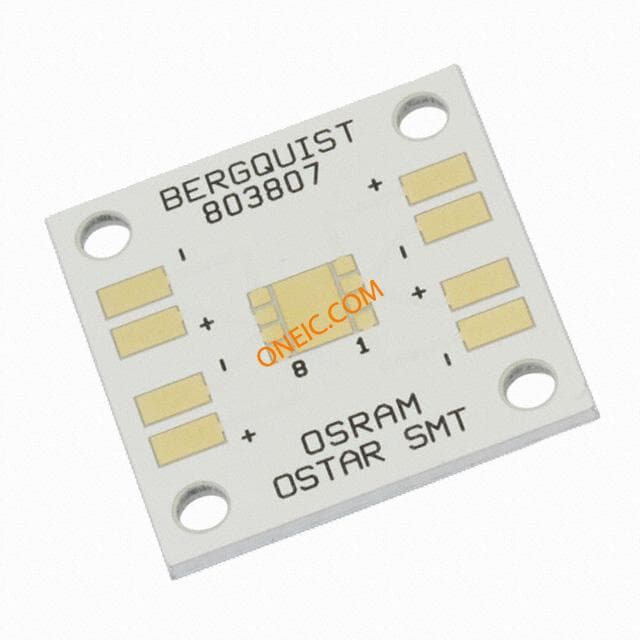

803807
